CHINA WIND TURBINE BLADE Transport TRAILER FOR SALE
Wind Turbine Blade Transport Trailer For Sale- CHINA HIPOTRUK
POPULAR PRODUCTS
HIPOTRUK WIND TURBINE BLADE TRAILER

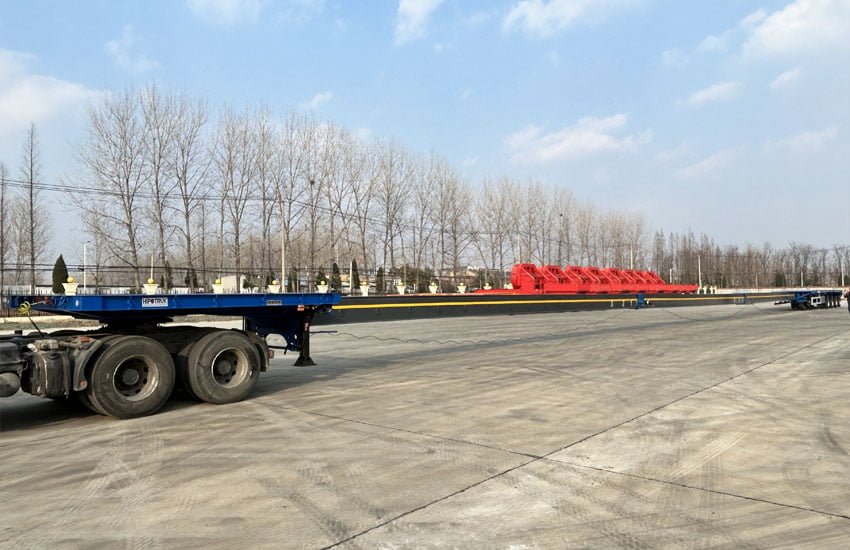

Wind Turbine Blade Trailer 4 Axles 70m
- 3 times extendable
- Load capacity 40t
- Overall length ( closed ) 21,850mm
- Overall length ( open ) 70,000mm
- Turntable steering offers ±45°
- Twin tires 275/70R22.5
- 4 axles ( the front and rear one is lifted)
- Air Suspension System
- Operation: Manual control & Radio remote control

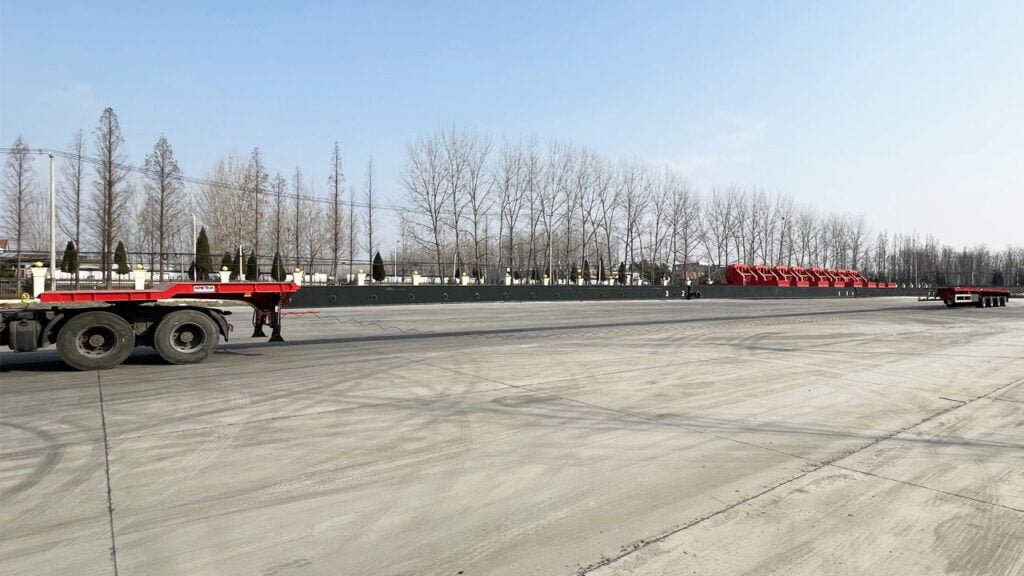

Wind Turbine Blade Trailer 4 Axles 62m
- 3 times extendable
- Load capacity 40t
- Overall length ( closed ) 19,850mm
- Overall length ( open ) 62,000mm
- Turntable steering offers ±45°
- Twin tires 275/70R22.5
- Air suspension system
- 4 axles ( the front one and rear one is lifted)
- Operation: Manual control & Radio remote control
Wind Turbine Blade Transport Trailer 56m
- 3 times extendable
- Load capacity 60t
- Overall length ( closed ) 22,500mm
- Overall length ( open ) 56,000mm
- Turntable steering offers ±35°
- Twin tres 275/80R22.5
- 4 axles or 5 axles
- Operation: Manual control & Radio remote control
6 Axles Wind Turbine Blade Transport Trailer
- 3 times extendable
- Load capacity 60t
- Overall length ( closed ) 24,000mm
- Overall length ( open ) 60,000mm, 70,000mm
- Turntable steering offers ±35°
- Twin tres 275/80R22.5
- 6 axles (13 ton/axle)
- Operation: Manual control & Radio remote control
8 Axles 63m Windmill Blade Extendable Trailer
- 3 times extendable
- Load capacity 60t
- Overall length ( closed ) 24,000mm
- Overall length ( open ) 63,000mm
- Platform height 1,400mm
- Platform width 3,000 mm
- Turntable steering offers ±35°
- Twin tres 275/80R22.5
- 8 axles (13 ton/axle)
- Operation: Manual control & Radio remote control
Customize Wind Turbine Blade Transport Trailer
We can design & manufacturer the suitable wind turbine blade transport trailer according to the blade you are going to haul.
Just let us know your requirements, we will offer a wide array of wind turbine blade trailers, tailored to meet your specific transport needs.
Product gallery
HIPOTRUK WIND TURBINE BLADE TRAILER
We have exported globally, from Africa to Central and South America, and Southeast Asia, and we understand the unique demands of your job. Our trailers are customizable, ensuring they align perfectly with your specific requirements, safeguarding your cargo every step of the way.
YOUR BENEFITS
EMPOWER YOUR BUSINESS WITH HIPOTRUK
Why Choose HipoTruk Wind Turbine Blade Transport Trailers? | Top Reasons to Trust HIPO for Your Transport
DURABLE CONSTRUCTION FOR NON-STOP OPERATION
SAFETY AND COMPLIANCE FOR YOUR FLEET
CUSTOMIZED ON-DEMAND & FAST DELIVERY
QUALITY SERVICE, YOUR STRONG SUPPORT
At HIPO, your satisfaction is our utmost priority. We offer comprehensive quality services, including expert guidance throughout the purchasing process, after-sales support, parts support, and technical support, to keep your extendable wind blade trailers operating smoothly.
RECOGNIZED BY LARGE INTERNATIONAL COMPANIES
THIRD-PARTY INSPECTED, GUARANTEED
PROFESSIONAL PACKING AND SHIPPING
What they say about us
Expertise and quality second to none, A stellar experience with Hipotruk’s Trailers.
Common Questions
Most Popular Questions.
The Most Popular Questions You May Want to Know About Us
All You Need To Know About Extendable Wind Blade Trailer
While I may not have started as an expert in Extendable Wind Blade Trailers, I trying my best effort to make some useful information for you. After a week of meticulous research and extensive discussions with our seasoned engineers for over 8 hours, combined with my ten years in sales, I’ve distilled my findings into this article. My aim? To offer you valuable insights and guidance.
In this detailed exploration, we’ll uncover the features and technical specifications of Extendable Wind Blade Trailers. We’ll sift through the various types and provide you with a structured buyer’s guide for these trailers. Moreover, we’ll arm you with practical tips to help you identify the best supplier from China. Ready? Let’s embark on this informative journey together!
Chapter 1: What is an Extendable Wind Blade Trailer?
An extendable wind blade trailer, also known as a telescopic windmill blade transporter, is a special trailer for the transportation of wind turbine blades. These trailers can extend two times, three times, or even four times to transport 60 meters to 90 meters windmill turbine rotor blades or other super long items that common flatbed trailers can’t accommodate.
Chapter 2: Different Types of Extendable Telescopic Trailers
There are many types of extendable wind blade trailers in the world, now I just want to discuss China’s extendable wind blade trailer, why? because I’m from China extendable trailer manufacturer Hipotruk, and very familiar with China products. Alright, Let’s get straight to the point and dissect how many types of extendable trailers in China.
4 Axles Wind Turbine Blade Trailer (70m, 62m, 56m):
Unlike your common flatbed trailers, the 4-axles extendable wind blade trailer has extendable frames that can enable the trailer to stretch from 24 meters to 56 meters,62 meters, and even 70 meters. This adaptability makes it perfect for transporting windmill blades of varying lengths
The trailer is equipped with hydraulic turntable steering systems. This system allows the axles to achieve a steering angle of 25-45 degrees, making it easier for the trailer to steer, especially on curvy paths or narrow lanes. You can choose manual or remote control to control the steering systems.
For the suspension, there are mechanical suspension, air suspension, and hydraulic suspension for optional. The cost of mechanical suspension is budget-friendly, so you can choose according to your budget and your transport road condition.
When it comes to payload, this trailer doesn’t disappoint. In its closed state, it can handle loads over 40 tons – 60 tons. If fully extended, it can also carry 30 tons of cargo, making it easy to transport wind blades.
6 Axles Extendable Wind Turbine Trailer (Extendable from 60m to 70m):
Due to the different load requirements on axles across different countries, to meet load requirements, sometimes, the manufacturer has to increase the number of axles. That’s why the 6-axle extendable wind blade trailer comes into play.
This trailer can be stretched from 60 meters to a remarkable 70 meters after three or four-time extensions, making it easy to transport wind blades as long as 80 to 100 meters and weighing between 20 tons to 35 tons. It’s a perfect solution for those extra-long blades.
Its hydraulic turntable systems allow axles to achieve a 35-degree steering angle. This ensures the trailer can navigate even running on the most challenging routes, like narrow streets and sharp bends. Operators have the flexibility of manual or remote control for ease of operation.
The standard gooseneck is a popular choice for its low cost. However, there also has a hydraulic gooseneck for those who prefer it. For a suspension system, you have the choice between mechanical, air, or hydraulic suspension, depending on various load and terrain requirements and your budget.
8 Axles 10 Axles Telescopic Windmill Turbine Blade Trailer:
This trailer can stretch out to an impressive 63 meters after four-fold extension, it’s 24 meters when retracted. This versatility makes it ideal for carrying windmill blades ranging from 70 to 80 meters in length, and 20 to 30 tons in weight.
but why it has 8 axles and even 10 axles? because transporting heavy windmill components in countries with specific axle load limits can be challenging. For instance, some countries only permit a maximum of 10 tons per axle. To transport 80-ton cargo in such regions, a trailer with 8 axles and 10 axles becomes necessary.
Thanks to the hydraulic steering axles, the trailer can steer effortlessly, ensuring a smooth and secure transport of your wind blades or tower sections.
Hydraulic Modular Trailer with Telescopic Spacer:
This type of hydraulic modular trailer is equipped with a telescopic loading spacer for transporting massive wind rotor blades up to 100 meters in length and weighing 35 tons, as well as wind tower sections. It’s mainly used for transporting off-shore windmill turbine blades.
One of the standout features of this trailer is its advanced hydraulic suspension system, it can achieve a 45°- 55°steering angle, which is better than common extendable trailers ( can only achieve a 25°-35° steering angle), making it easier to navigate through challenging routes.
Besides, the loading platform height of the trailer is just about 0.7 meters in the Nicolas structure configuration. This is a considerable reduction compared to the 1.5-17 meters height typical of extendable wind blade trailers, greatly improving transport safety.
Chapter 3: The Specs and Designs of Hydraulic Modular Trailers
Chapter 3: Main Features & Components of Extendable Wind Blade Trailer
Okay, Now let me take you to explore the main structural features of the Chinese Extendable Wind Blade Trailer.
3.1 Gooseneck: Cranked, Straight & Hydraulic Gooseneck
Cranked Gooseneck: This design features a crank behind the front platform, allowing a lower height at the rear platform, and reducing load height.
Straight Gooseneck: Offers a uniform height between the front and rear platforms, ideal for specific transportation needs.
Hydraulic Gooseneck: It can be adjusted to accommodate various fifth-wheel heights on tractors. what’s more, when the truck steers, the hydraulic gooseneck can send the signal to the rear axles to steer in response to the truck’s movements, in other words, the axles will follow the truck’s movements, ensuring smooth navigation through tight bends and complex routes.
3.2 Construction Frame & Material:
The construction Frame of a telescopic trailer usually adopts high-strength steel like HG60, or Q550, so it can make sure the trailer’s telescopic beams remain stable and don’t sag when transporting heavy wind blades.
However, there some suppliers might go for cheaper steel, like Q456 or Q345 steel material which are mainly used for making normal trailers, to cut costs. Of course, it can save money upfront, and also appeal to some buyers who like cheaper prices, but it might not be the best in the long run. Cheaper steel could lead to problems like the telescopic beam bending over time, and you would have to spend more time and money to fix it.
3.3 Extension Mechanism:
Have you ever wondered why extendable trailers can handle various sizes of wind blades? The secret lies in their extension mechanism. This mechanism is a core technology for every manufacturer. In brief, it utilizes a combination of hydraulic and mechanical systems. This system allows the trailer’s extension beam to extend and retract to adapt to different sizes of wind blades.
Extension Beams (Telescopic Deck):
Wind blade extendable trailers stand out with their ability to stretch, offering three or four extension levels. This design allows them to transport rotor blades up to 90 meters long. Whether it’s triple or quadruple extending, the only Hipotruk trailer’s loading platform can extend beyond 70 meters in China, making it perfect for different lengths of windmill turbine blades. Below are components of extension beams for your reference.
Pulling Extension Platform:
Pulling it out with the towing vehicle, which is very simple to operate. You can extend it for longer blades or retract it for shorter ones, offering great flexibility.
Tail Extension Platform (Telescopic Deck):
This is located at the rear of the trailer and needs additional equipment, such as a truck head or forklift, to pull it out. Since it requires extra equipment to extend, the operation is more cumbersome.

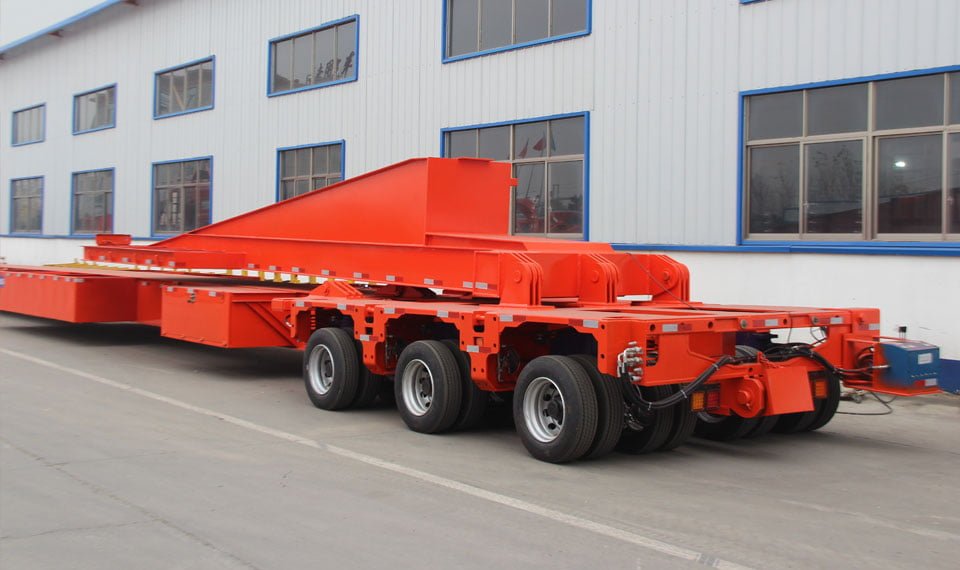

Folding Extension Platform:
When not in use, this platform folds up neatly at the end of the trailer. If not needed, it can be removed.
3.4 Steering Systems:
When navigating tight spaces or tough terrains with wind blades, the steering system of your telescopic trailer is key. Here’s a look at the three primary steering systems in Chinese telescopic trailers.
Hydraulic Turntable Steering:
This is a common steering system for extendable wind blade trailers, This system can achieve 25° -35° steering angle. cust down on tire wear, easy to maintain, and also is a budget-friendly option for buyers. You can choose mechanical spring suspensions or air suspension combined with the turntable steering system according to your needs. The difference is air suspension can adjust the cargo platform’s height and also provide smooth driving experience.
Hydraulic Steering Axles:
Hydraulic steering axles can achieve 35° steering angle and make it great for making sharp turns without a hassle, but they have to wait for a command from trailer’s hydraulic gooseneck. When the truck turns, the gooseneck sends a single to the rear hydraulic steering axles, making the trailer’s axles work with the truck’s steering, helping the trailer follow along nicely. what’s more, these hydraulic steering axles it can adjust trailer’s platform height if it is equipped with hydraulic suspension.
Hydraulic Bogies:
Found on the bigger trailers with many wheels (multi-axle modular trailers), these help the trailer turn sharply, up to +/-55°, which is great for tight spaces. They also let you adjust the height of the load you’re carrying. While they’re super useful, they do cost a bit more than the other two systems.
3.5 Suspension System
The suspension system is vital for any telescopic wind blade trailer, as it absorbs bumps and shakes during transport, keeping those precious wind blades safe. There are several options to consider, based on what you need to carry, your local road laws, and how much you’re willing to spend. The most common ones include the leaf spring mechanical suspension, air ride suspension, and hydraulic suspension. Most Wind Blade Trailers go for mechanical suspension. Why? Because it’s cost-effective, durable, easy to maintain, and can handle tough roads like a champ.5
3.6 Braking System:
Transporting wind blades is no small task – they’re heavy and super important. That’s why you want a trailer with top-notch safety features. Think WABCO emergency relay valves and anti-lock braking systems (ABS). These aren’t just fancy extras; they’re lifesavers. They keep your trailer from skidding, making sure those blades stay put all the way.
3.9 Braking System:
These trailers are normally equipped with a compressed air brake system, including double brake chambers, WABCO relay valves, and ABS for safe operation. but please note that not all suppliers can use WABCO and ABS, to save cost, some suppliers would choose normal accessories to replace them, but you know it will reduce driving safety.
Chapter 4: Extendable Wind Blade Trailer Techincal Specs & Dimensions
3.10 Main Technical Specifications: Goldhofer Model Modular Trailer
| Dimension ( mm ) | 21850mm X 2900mm X 1600mm |
| Overall length ( mm ) | 70,000 |
| Extension | 3 Times extendable |
| Platform height(mm) | 1600+100/-75 |
| Load Capacity(t) | 40 |
| Steering system | Hydraulic Turntable Steering System |
| Steering angle | ±45° |
| Axle | 4 Axles ( the front and rear one is lifted by airbag) |
| Operation | Manual or Remote Control |
| Suspension | Air Suspension |
| Tire | 275/70R22.5, 17 units |
| Brake system | Cable remote control & Radio remote control |
| Brake system | WABCO |
| Landing gear | JOST |
Chapter 5: Choosing the Best Extendable Wind Blade Trailer: A Buyer’s Guide
Picking the perfect Chinese windblade trailer is more than just a purchase – it’s a crucial decision. You’re dealing with huge wind turbine blades, and you need a trailer that’s up to the task. These specialized trailers, with their nifty extendable platforms, make moving these behemoths a breeze. But hold up, there’s a lot to think about before you seal the deal. Here’s what you need to keep in mind:
5.1 Size and Weight of the Blades: Know Your Load:
First things first, figure out how big and heavy the wind turbine blades you’re transporting are. This info is vital because it helps the manufacturer recommend the right extendable trailer for your needs.
5.2 Extendable Length: One Size Doesn’t Fit All:
Different blades, different lengths. Extendable wind blade trailers come in various lengths to match the blade size. The golden rule? The longer the blade, the longer your trailer needs to be.
5.3 Material and Build Quality: Strength Matters
When it comes to these trailers, the material is king. You want something made from tough stuff like HG60 or Q550 high-strength steel. Why? Because it means your trailer can handle the big loads without the extension beams sagging or giving you headaches on the road.
5.4 Load Capacity: Can It Handle the Weight?
The main thing on your mind should be the maximum weight of the wind turbine blade you’re planning to haul. Make sure the trailer you choose has a load capacity that can comfortably take on the weight of your blades.
5.5 Steering Mastery for Windmill Blade Trailers:
Do you have a long extendable trailer for those winding roads? You’ll need top-notch steering to handle it right. These extendable windmill blade trailers come packed with options like hydraulic turntable steering, hydraulic bogies, and hydraulic steering axles. Your pick depends on what you’re hauling and your budget. Hydraulic turntable steering, though? That’s your ticket for smooth sailing around those tight corners.
5.6 Steering Mastery for Windmill Blade Trailers:
The Foundation of Your Haul
The number of axles you’ll need is all about staying on the right side of local trailer laws. Whether it’s 3 to 4, or up to 10 axles, there’s a mix of extendable flatbed trailers and low loaders to fit your needs. The tire choice, from 275/80R22.5，275/70R22.5 to the sturdy 12R22.5, hinges on your load and how high you want your trailer off the ground.
5.7 Staying on the Right Side of the Law
Before you buy, make sure your extendable wind blade trailer plays nice with local laws. A little homework on regulations now can save you a headache later. Sometimes, it’s worth getting the lowdown from the manufacturer on what’ll fly in your area.
5.8 Safety First: Non-Negotiable:
Hauling those huge blades? Safety’s got to be top of mind. Look for trailers with the best safety gear, like WABCO’s emergency relay valves and ABS systems that stop skidding in its tracks, plus solid latches to keep everything tight and right during the journey.
5.9 Brand Talk: Reputation Matters
What’s the word on the street about the brand? A solid rep and rave reviews often mean you’re onto a good thing. Scour user reviews, chat with past buyers, and get the scoop on how those trailers perform in the wild.
HIPO: China’s Wind Blade Trailer Whiz
HIPOTRUK is a name that resonates in the wind-blade trailer world. Known for their robust quality and solid track record, HIPO stands as a testament to what a dedicated manufacturer can bring to your operations – smooth, safe, and efficient transport.
5.10 Support and Maintenance:
The Lifeline of Your Trailer
Good support and maintenance are like gold in the trailer world. It’s comforting to know you’ve got backup when things go sideways, and having easy access to maintenance means your trailer’s got more miles in it.
Chapter 6: How to find a reliable extendable trailer manufacturer from China.
As an overseas buyer, choosing a reliable wind blade extendable trailer manufacturer from China could not be an easy task. You can find many suppliers in the same industry easily, they provide the goods with different prices and quality. However it is not easy to figure out which supplier is better. Below are a few guides for you to find a reliable extendable telescopic windblade trailer manufacturer.
6.1 Visit supplier website:
Before sending an inquiry, you need to visit their website first, which provides relevant information about their company’s introduction, what products they produce, production experience, production capacity, what quality assurance systems they have, employee conditions, and material supply chain.
Please note that if a supplier is displaying too many different product categories on their website, then most probably they are a mediator( middleman) Your safest bet is to choose a supplier that specializes in specific areas.
6.2 Contact potential suppliers:
After you make the request, then you can see how the potential suppliers are interacting with you. It can save a lot time and energy to communicate with a professional supplier, with their rich export experience, they can provide the best solution and products to meet your requirement, and provide you with their successful cases, product videos, and technical drawings according to your transportation needs. So that means there are fewer chances of misunderstanding happening which speeds up the product delivery process if you contact a professional supplier.
But if you find a mediator, most times a mediator takes longer to respond because they have to check your requirements and details from the actual manufacturer. Then it is not only a waste of your time, but also delays the whole delivery process.
6.3 The Proper Trailer Solution:
Extendable Wind Blade Trailers from different factories have their features: advantages and disadvantages.
When extendable wind blade trailer vendors are bragging about their trailer advantages, think twice about whether the advantage caters to your needs and outweighs its downsides, if yes, it is relatively a good solution.
There is no Perfect & flawless design. You have to balance out its merits and flaws. Be level-headed and detect it when suppliers try to brainwash you. Tips for picking up the extendable wind blade trailer, Try to ask yourself a few questions next time.
1. Do I need it or do I just want it?
2. Is this necessary? Or it overconfigured?
3. Which part is more of my concern? What’s the benefit of it? What’s the downside of this solution(or this design)?
4. Can this solution save my total cost? Or just saving my purchase cost, but bringing me a lot of never-ending trouble in the future ( repair & maintenance & unexpected failures )?
6.4 Supplier Pricing:
You can find extendable wind blade trailers at different prices in China, but the quality of these trailers is not in the same line. High-price extendable wind blade trailer means higher quality Since price equates to quality in most cases. Especially when you buy something from China, to win an order, some bad suppliers or factories can offer you an unbelievably low price.
But we all know that the price does reflect quality, high-quality raw materials, and durable parts are often more pricey than ordinary parts. anything too low means poor quality or fraud, and the low price could turn out to be never-ending trouble ( high repair and maintenance costs or even having to buy a new one) in the future.
So it is best to make a comparison in prices of the same extendable wind blade trailer with different suppliers. you don’t need to compromise on the quality of the trailer when trying to save costs but try to balance quality and your budget.
6.5 Visit Factory, Quality level and Delivery time:
If you have one, two, or three potential suppliers, you still cannot decide which one to choose. Then it is best to visit the factory in person and test or inspect their wind blade extendable trailers. However, during the coronavirus pandemic, you may not visit China, but you can also make the video conference at least with your potential suppliers.
Be ready to ask for the information you want to know, communicate with their technical engineers about what type of wind blade extendable trailer they produce, and confirm whether their extendable trailer can meet your transportation needs. besides, ask your suppliers whether they arranged to make a quality test that their extendable trailer before delivery so that you can know whether their wind blade extendable trailer can meet your transportation needs.
What’s more, It is a good time to negotiate the price with your supplier when you visit them. you probably meet their top management to get a better price and shorter delivery time.
6.6 Check the supplier’s significant customers
If you find that the supplier has worked with a well-known company in your local area, it means that considerable customers trust this supplier and are very worthy of cooperation. Many factories in China produce high-quality products, but they usually cooperate with trading companies and sourcing agents, which means that these factories sell their products to abroad markets through third parties.
To protect their customers’ information, these third parties will certainly not share their customers’ information with these factories, so these factories are not able to provide their foreign customers information if you ask. but it doesn’t mean their product quality is not good, on the contrary, they not only can provide you with a high-quality product, but may also good price some time. (sometimes although you can find these factories, they may not provide a better price to you, because your purchase quantity may not be larger than their trading companies or agents at the beginning, and they have cooperated the the trading companies or agents for a long time, they don’t want to break their cooperation agreement )
In a word, if the supplier can’t provide customer cases or their customer’s contact information near your local areas, you still could ask them to provide what kinds of products they produced for their customers before and ask them to provide you with more product videos, product photos, production workshop video, and quality test video, etc.
Chapter 7: What is the price of a China extendable wind turbine blade trailer
Normally, we are always going to be concerned about money when we buy something. The price is a very important factor that appeals to customers to buy China extendable wind blade trailers. The price of the extendable trailers is different depending on different configurations, so the price is just for your reference, for the best exact price, please contact us now.
We know when you see the price we give you, you would say:
“Your trailer is too expensive”
“ Your price is much higher than another trailer supplier”
Those are the common responses from 90% of prospective clients after we give a quote on an extendable wind blade trailer. Sadly yes only 10% could understand investment drives solutions. We understand clients would say China’s product price is always cheap, so they should get a cheaper price, otherwise, they are going to be apprehensive about spending more than is necessary. Or they are also going to worry about being taken advantage of.
But we, HIPOTRUK are not going to be the cheapest solution, the reason is we just invest more than other companies who provide lower prices do in generating the results our clients need and we do not make some of the concessions they make to give their clients a lower price and different outcomes
Here are our differences:
✅HIPO Extendable Wind Blade Trailer can handle your transport task securely and quickly to retain consumer loyalty.
✅It won’t break down every few months to stop transportation missions when a wind power project is around the corner.
✅It’s easy for maintenance and operation Increase productive efficiency and reduce operating costs.
✅HIPO Extendable Trailer offers minimum cost-to-use, but has high attendance. It is durable to run for a long period. (up to 2 years warranty). Wearable spare parts are easily seen in your local market and you don’t need to replace critical parts frequently.
In General, Our HIPO Extendable Wind Blade Trailer might be of high purchase cost but it’s economical to use. It helps to achieve work efficiency and profitability, Increase productive efficiency, and reduce operating costs
Our HIPO Extendable Wind Blade Trailer is different.
That’s how we generate better outcomes in the areas where you want to make a difference.
So…
Would it make sense for you to invest a little more to produce the outcomes you need and lower your overall costs?
Chapter 8: Are China-made extendable wind blade trailers are low-quality?
Firstly, Not all China-made products are poorly built and dangerous. This is a notion that most customers should shake off. In fact, according to data from the United Nations Statistics Division, China contributed to 28.7 percent of global manufacturing output in 2019. Moreover, China has been the world’s largest manufacturing country since it overtook the United States in 2010.
Many of the world’s quality brands are manufactured in China. The best example would be the Apple iPhone. Among the smartphone brands in the market, the iPhone stands on top due to its luxurious feel and build quality. The majority of Apple’s smartphones are manufactured and assembled in China, which shows the level of high-quality products made in China. What’s more, Huawei, and Xiaomi are world-famous brands, they are born in China.
Regarding the quality of China-made extendable wind blade trailers, The quality of extendable wind blade trailers is good or not? It all depends on the company and factory you are dealing with. As the buyer, you should keep in mind that there always good quality products and poor quality products in the market. Some buyers choose the product with low configurations and low specifications, the manufacturers will only follow low specifications to produce the product, so the product quality will definitely not be good, It should not be the manufacturer’s fault. In addition, some buyers always persistently pursue low prices, which would appeal to some bad suppliers to use cheaper materials to produce poor quality products. Therefore, you need to do research and interact with your potential suppliers before placing an order with them.
We, HIPOTRUK have more than 25 years of manufacturing experience and tech of extendable wind blade trailers and other wind blade trailers. We won’t say our China HIPO wind blade adapter is better than the European brand, but our China HIPO extendable wind blade trailer is as durable as a Europe-made extendable wind blade trailer and rapidly closing the quality gap. We also have a very competitive price to compare Euro-made trailers. If you are looking to buy an extendable wind blade trailer from China, you won’t miss a professional supplier like us.
Chapter 9: .How to prepare for Windmill Turbine Blades Transport?
Below is list of steps that will lead to successful delivery of wind turbines and additional products:
Research what type of windmill turbine you need to haul
Check the type and quantity of windmill turbines you need to carry. Does it have other additional products that need to be shipped separately? So that you will know how many extendable trailers and trucks you need to handle this transport task. Know where it comes from (normally the windmill turbine blades are from the port) so you can calculate how long it will take to the wind power farm.
Securing the Best Proper Windmill Blade Transport Trailer
You have to secure the best proper wind turbine blade trailer to help you finish the transportation tasks safely and smoothly. A windmill turbine blade trailer may need to use a multi-axis trailer to transport such long, heavy wind blades. When comes across sharp turns, the tires, wheels, and suspensions as well as surface are subjected to additional wear and tear. So the extendable wind blade trailers should have the function of a hydraulic steering system, and hydraulic lifting to handle these problems.
Arranging the correct road transport permits
Apart from route planning and coordinating the right trucks and wind blade extendable trailers for the journey, one of the most crucial points of turbine blade transport is arranging the correct road transport permits. Both the size and weight of the turbine blade come into play here since the heaviness, and excessive length, of a turbine blade, typically qualify it as a superload shipment. As a superload shipment, permits often need to include the following:
- Route survey for tight bend roads,bridges, crossings, and overhead obstructions
- Dimensional diagrams of load
- Traffic pattern reviews
- Do a practice run
- Escort services meet with local government regulations
- Seasonal considerations, e.g., ice and snow
- Surety bond
Conclusion:
With the increased demand for renewable wind engines, there will be more and more countries investing in and developing wind power projects. so if you are a transport company or importer, it’s time for you to research your country’s wind energy projects and learn what kinds of trailers you need to purchase to finish the transportation task of the wind power project.
The first trailer you need to learn about is the extendable wind blade trailer which has two main features: extendable deck and steering axles. You also need to know how to compare and choose the right proper extendable trailer. but the most important thing is to find a reliable manufacturer of extendable wind blade trailers from China, A reliable and professional manufacturer can provide a professional suitable solution to cope with your transport needs and tell you the merits and defects of kinds of wind blade trailers.
Get a Quote
Contact us 24×7 to answer your questions and requirements.
Need more help?
Contact us 24×7 to answer your questions and requirements.
+86 13864095913
+86 13864095913
Can't Find Answer? Ask Us
Contact us 24×7 to answer your questions and requirements.
+86 13864095913
+86 13864095913
