The push toward renewable energy has elevated wind energy’s role in sustainable power generation. Moreover, transporting wind turbine components—such as blades, tower sections, and nacelles—demands specialized equipment capable of handling oversized, heavy, and delicate loads. Furthermore, hydraulic modular trailers (HMTs) have become indispensable in the wind energy industry, offering the flexibility, stability, and high load capacity needed to safely transport turbine components from manufacturing facilities to installation sites. Here’s a comprehensive look at why HMTs are critical for wind turbine transport.
Modular Design for Customizable Configurations
Wind turbine components come in various sizes and shapes, and HMTs offer customizable modular configurations to accommodate these unique requirements.
End-to-End and Side-by-Side Connections
HMTs allow sections to be connected end-to-end for transporting long blades or side-by-side for wider components. This adaptability ensures that each trailer configuration can be optimized to the specific dimensions of each wind turbine component.
Tailored for Specific Loads
HMTs can be customized to match the requirements of different turbine designs. For example, large tower sections or nacelles can be transported precisely using configurations tailored to each load’s unique size and weight.
Specialized Accessories

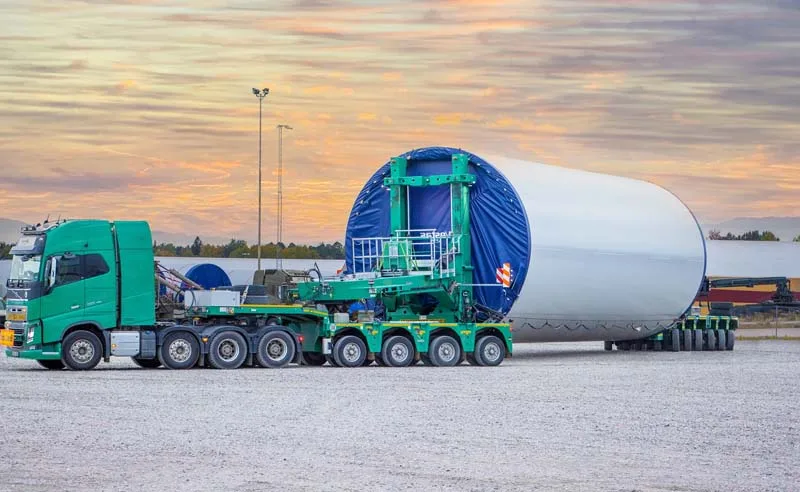

HMTs offer accessories like wind blade adapters, which securely hold turbine blades during transport, and wind tower adapters, designed to handle sections up to 150 tons and 6,500 mm in diameter. These accessories improve stability and prevent damage to critical turbine parts.
High Load Capacity for Heavy Components
The sheer weight of wind turbine components, especially nacelles and tower sections, requires trailers with substantial load-bearing capacity. Additionally, HMTs are engineered to handle these demands.
Extreme Weight-Bearing Capability
HMTs are built to support loads up to 45 tons per axle line, with additional axle lines available for larger loads. This makes HMTs ideal for transporting components like nacelles, among the heaviest parts of a wind turbine.
Adjustable Load Capacity
The modular nature of HMTs allows for customization based on the number of axle lines needed, accommodating both lighter and weighty components. This flexibility ensures that trailers are equipped to transport large wind turbine parts safely and efficiently.
Even Weight Distribution
Hydraulic suspension systems in HMTs ensure even weight distribution across axles, reducing stress on the trailer, road infrastructure, and the cargo itself. This feature is critical for supporting heavy loads such as tower sections, which need a balanced transport solution.
Enhanced Maneuverability with Advanced Steering Systems
Wind farms are often situated in remote areas with challenging terrains and narrow access roads. HMTs are equipped with advanced steering systems to navigate these routes with ease.
- Multiple Steering Axles: HMTs are designed with multiple steering axles that enable precise control, even on winding or narrow roads. This feature is essential for navigating the complex routes that often lead to wind farm locations.
- Advanced Steering Angles and 360-Degree Capability: Steering angles of 45° to 55° allow HMTs to maneuver around tight corners, while some models offer 360-degree steering for carousel and sideways movements, making it easier to position components at job sites.
- Gooseneck Options: Various gooseneck designs, such as the STZ-V gooseneck, synchronize the trailer’s steering with the tractor truck. This helps maintain stable control over the load, particularly on challenging roads.
Stability and Safety Through Hydraulic Suspension
Transporting large, tall components such as turbine towers requires stability to prevent tipping and ensure a smooth journey.
Hydraulic suspension in HMTs maintains load stability by evenly distributing weight, which reduces stress on axles and minimizes the risk of tipping. This is essential for transporting tall tower sections that could otherwise be prone to instability.

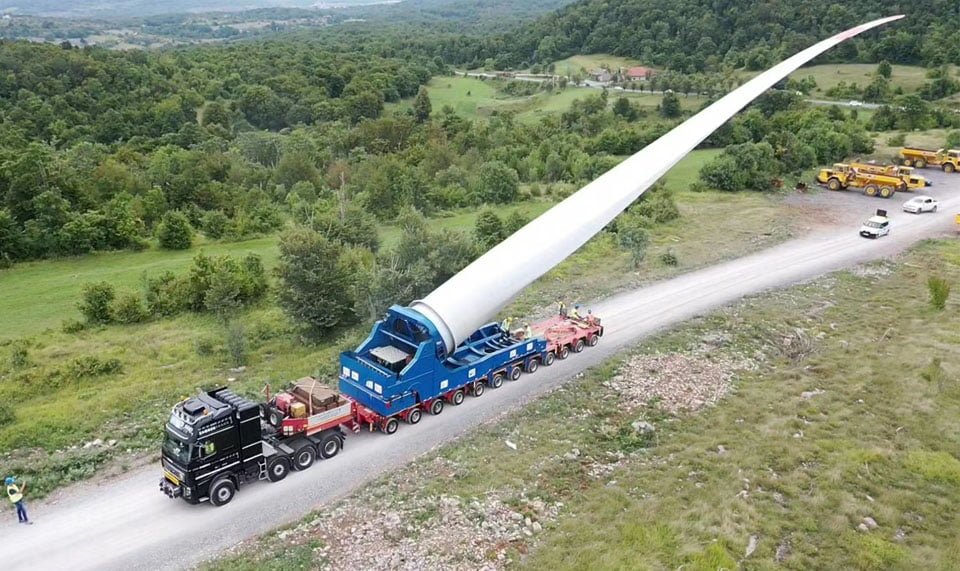

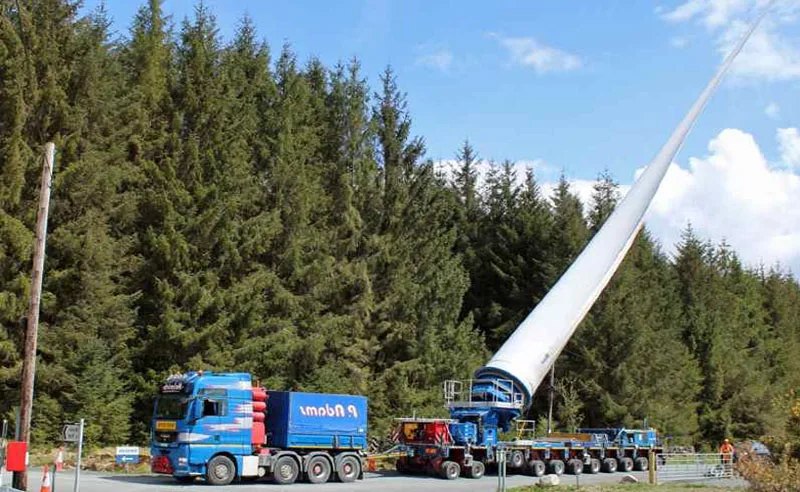

The hydraulic system enables platform height adjustments, typically within a range of about 300 mm, allowing trailers to pass under bridges and power lines while carrying tall turbine components. For wind turbine blades, some HMTs can be integrated with blade lifters that allow the blades to tilt up to 60 degrees, facilitating transport through challenging terrains and low-clearance areas.
Operational Efficiency for Project Timelines
Hydraulic modular trailers contribute significantly to operational efficiency, which is essential for wind energy projects with tight installation schedules.
- Quick Reconfiguration for Different Components: The modular design of HMTs allows for easy reconfiguration, reducing downtime between shipments and enabling faster transport for multiple sections. This adaptability is crucial for large wind farm projects requiring efficient logistics.
- Multiple Axle Configurations: HMTs can be configured with different axle numbers (e.g., 3, 4, 5, 6, or 8 axles) to accommodate various load weights and sizes, providing a tailored approach to each transport requirement.

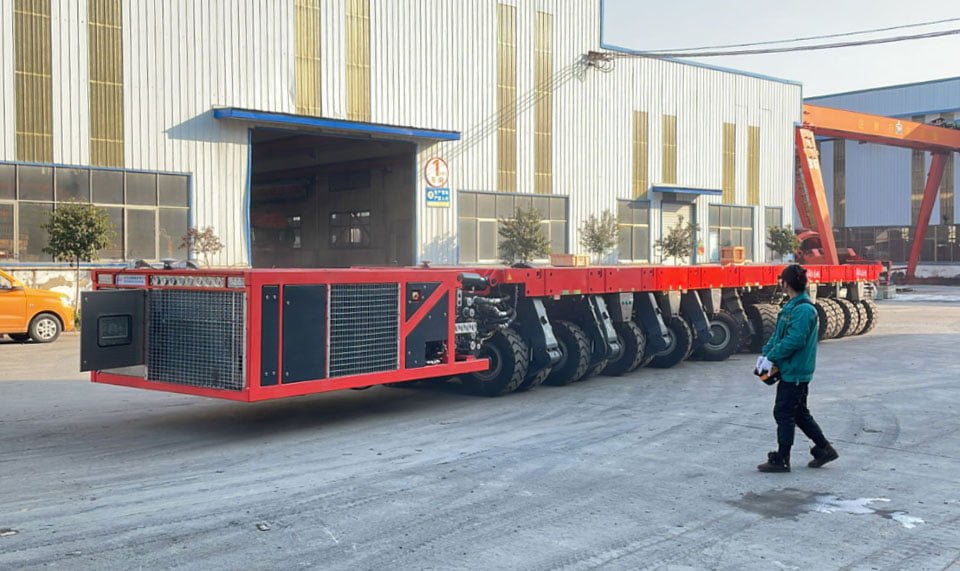

3. Self-Propelled Capabilities with Power Pack Units (PPUs): Customizable PPUs can be added to HMTs for self-propelled movement, enhancing maneuverability in tight spaces. This feature is handy for precise positioning at installation sites.
Long-Term Cost-Effectiveness and Adaptability to Terrain
While HMTs may have higher initial costs than traditional trailers, their long-term benefits often lead to cost savings in wind turbine transport operations.
- Versatile Use Across Projects: With interchangeable configurations and a variety of accessory options, HMTs are adaptable for transporting different turbine components and other oversized loads. This versatility reduces the need for multiple types of trailers, maximizing the trailer’s value.
- Durability and Reduced Maintenance Costs: The robust construction and hydraulic systems of HMTs ensure they withstand the demands of wind turbine transport, minimizing repair and maintenance costs over time. Their durability makes them an ideal choice for companies handling frequent, large-scale transport operations.
- Adaptable to Rough Terrain: Designed for rugged landscapes, HMTs can easily navigate the rough roads often leading to wind farms. Their hydraulic suspension and structural strength provide safe transport even in challenging conditions, reducing delays and ensuring timely delivery.
Conclusion
Hydraulic modular trailers are essential in the wind energy industry, offering a blend of modular design, high load capacity, advanced steering, and safety features. With their customizable configurations and accessories, HMTs can handle the unique requirements of wind turbine transport—from blades and nacelles to large tower sections.
The versatility, stability, and operational efficiency of HMTs make them invaluable for companies involved in wind turbine logistics. As renewable energy projects continue to grow, hydraulic modular trailers provide a cost-effective, reliable, and adaptable solution, helping to advance the global transition toward sustainable energy. For wind turbine transport, HMTs are not just beneficial—they are essential.
