Hydraulic modular trailers are versatile solutions for transporting oversized and heavy loads. Among the specialized configurations, split-type modular trailers and side-by-side combination trailers offer unique advantages that enhance transport efficiency, stability, and adaptability. This guide explores these configurations’ features, benefits, and applications to help you choose the right setup for your transport needs.
Introduction to Hydraulic Modular Trailer Configurations
Hydraulic modular trailers are designed for transporting loads that exceed standard dimensions and weights. By offering modular configurations, these trailers can be tailored to meet specific requirements for load size, weight distribution, and route conditions.
Key Benefits of Modular Configurations
- Enhanced Load Capacity: Modular setups increase load-bearing potential.
- Adjustable Dimensions: Trailers can be expanded in width or split for height adjustments.
- Improved Stability: Configurations provide greater stability, especially for high-center-of-gravity loads.
Split-Type Modular Trailer
Split-type modular trailers are engineered to minimize transport height and width, making them ideal for routes with dimensional restrictions.
Key Features of Split-Type Modular Trailers
- Minimized Transport Width: Split-type trailers are designed to streamline width, making them ideal for narrow or confined paths.
- Customizable Configurations: This setup can be customized to meet the specific requirements of oversized loads.
- Combination with SPMTs: Split-type trailers can integrate with Self-Propelled Modular Transporters (SPMTs), creating a flexible solution for specialty configurations.
Applications of Split-Type Modular Trailers
Split-type modular trailers are especially valuable in industries that require transporting tall or oversized cargo on routes with tight height restrictions. Typical applications include:
- Wind Turbines: Transporting long turbine blades while keeping a low height profile.
- Bridge Components: Moving prefabricated bridge sections through routes with dimensional constraints.
- Construction Equipment: Hauling tall machinery or prefabricated structures that require a low transport height.
Side-by-Side Combination Trailer
Side-by-side combination trailers involve arranging modular trailer units in parallel, significantly increasing the load-bearing capacity and stability for wider or heavier loads.
Key Features of Side-by-Side Combination Trailers
- Parallel Alignment: Trailer units are arranged side-by-side to create a wider base.
- Enhanced Load Capacity: This setup provides greater stability and higher load-bearing capacity, ideal for heavy loads.
- Variety of Width Options: Side-by-side configurations are available in different widths to suit varying load requirements.
Types of Side-by-Side Combinations Offered by CHINA HIPOTRUK

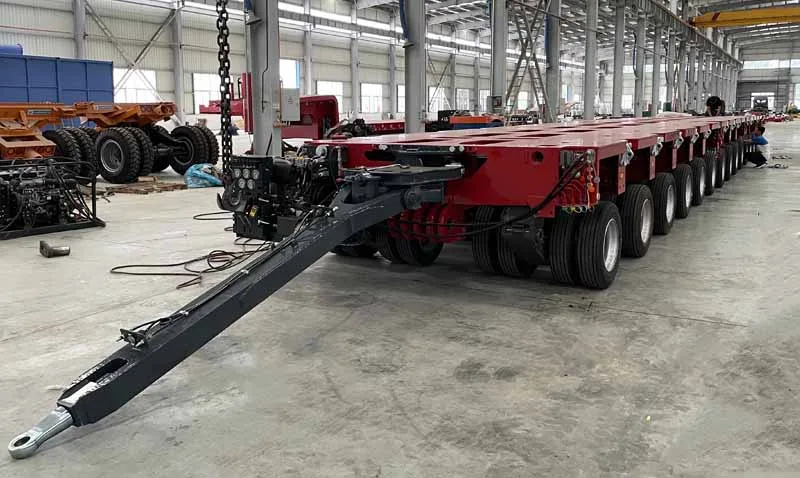

- Standard (2 File): A single-width configuration, typically 2,990 mm wide, for moderate-width cargo.

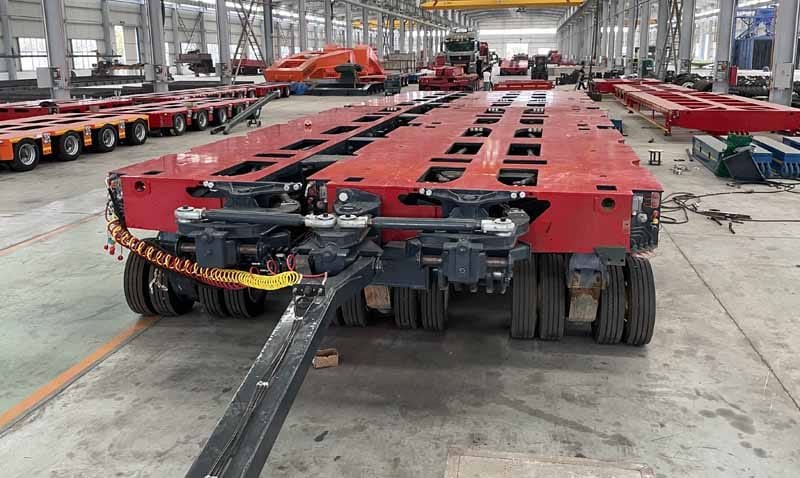

- Split (3 File Parallel Combination): A one-and-a-half width setup, measuring 4,810 mm wide, offering more stability for wider loads.

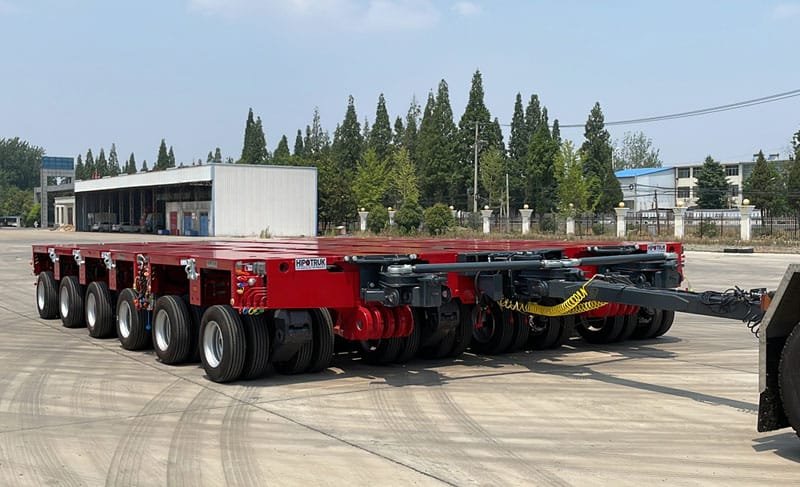

- Side-by-Side (4 File Parallel Combination): A double-width configuration, extending to 6,290 mm, designed for extremely heavy and wide cargo.
Applications of Side-by-Side Combination Trailers
Side-by-side combinations are especially useful for industries that handle heavy, wide cargo that requires greater stability and weight distribution. Typical applications include:
- Infrastructure Projects: Transporting wide bridge sections, tunnel boring machines, or industrial vessels.
- Heavy Machinery: Moving large construction or mining equipment.
- Prefabricated Building Components: Hauling oversized building sections for modular construction.
Benefits of Split and Side-by-Side Configurations
Both split-type and side-by-side combination configurations offer unique advantages that enhance the versatility and effectiveness of hydraulic modular trailers.
1. Adaptability to Various Load Sizes and Weights
- Split-Type Configuration: Reduces height and width for confined or restrictive routes.
- Side-by-Side Configuration: Expands width to handle heavier or wider cargo.
2. Increased Stability for High Center-of-Gravity Loads
Wider configurations provide better stability, especially for loads with high centers of gravity, reducing the risk of tipping or swaying during transport.
3. Enhanced Load Capacity
Side-by-side combinations significantly increase load-bearing capacity, allowing for the transport of extremely heavy cargo without the need for multiple separate trailers.
4. Dimensional Flexibility for Route Compliance
- Split configurations help navigate height restrictions, while side-by-side setups accommodate wider loads. This dimensional flexibility ensures compliance with route-specific regulations.
5. Customization for Complex Transport Needs
Both configurations can be customized to incorporate additional accessories like goosenecks, drop decks, spacers, and high girder bridges, providing solutions for complex transport challenges.
Choosing the Right Configuration for Your Transport Needs
Selecting the appropriate configuration depends on several factors, including load dimensions, weight, and route restrictions.
1. Consider Height Restrictions for Split-Type Trailers
If your route includes strict height limitations, a split-type modular trailer will help keep the load closer to the ground, minimizing overall transport height.
2. Evaluate Load Width and Weight for Side-by-Side Combinations
The side-by-side configuration provides enhanced stability and load-bearing capacity for wider, heavier loads. Choose this setup for applications that require a solid, wide base.
3. Assess Load Characteristics and Compatibility
Match the configuration with your cargo type and handling needs. Split-type trailers are ideal for high loads, while side-by-side combinations excel with width-heavy cargo.
4. Customization Needs
Consider additional features such as drop decks, goosenecks, or hydraulic spacers for more complex loads. Both configurations can be adapted for unique transport requirements.
Summary: Split-Type and Side-by-Side Combination Trailers
Split-type modular trailers and side-by-side combinations offer specialized solutions for transporting oversized and heavy loads. By understanding the unique benefits of each configuration, transport companies can optimize their trailer setups to achieve safe, efficient, and compliant transport operations.
Key Takeaways
- Split-Type Trailers: Best for low-profile, narrow-width transport on height-restricted routes.
- Side-by-Side Combination Trailers: Ideal for wide and heavy loads, providing a stable, wide base for safe transport.
- Customization: Both configurations can be fully customized to handle complex transport needs, enhancing versatility and operational efficiency.
Selecting the right trailer configuration allows transport companies to meet specific cargo requirements, overcome route challenges, and safely deliver oversized and heavyweight loads.
