1. Introduction
In industries, where heavy lifting and transport are an integral component, hydraulic modular trailers (HMTs), have become indispensable tools. HMTs can carry some of the heaviest, simplest loads imaginable; cargo that would otherwise be impossible to transport using conventional means alone. Industries, including construction, shipbuilding, energy production, and heavy manufacturing, rely heavily on HMTs for tasks such as moving wind turbine components, bridge sections, or industrial machinery from point A to B.
HMTs are both powerful and flexible vehicles. Thanks to their modular design, hydraulic suspension, and independent steering capabilities, HMTs can adapt their handling precisely according to load and terrain. HMTs can support incredible weights – often hundreds of tons – by connecting multiple trailer units in customized configurations, making these powerful yet flexible machines capable of accommodating almost any oversized load across challenging routes.
In this article, we’ll take an in-depth look at hydraulic modular trailers (HMTs). From their unique features and components to how they operate, HMTs provide efficient transport of large cargo efficiently and safely – something that other forms of cargo transport cannot. We will also explore their numerous configurations and applications across industries and how essential HMTs are in today’s modern economy.
2. What Is a Hydraulic Modular Trailer (HMT)?
A Hydraulic Modular Trailer (HMT) is a specialized type of platform trailer engineered to move heavy, irregular loads that traditional trailers cannot accommodate. Specifically engineered to support even the heaviest loads while offering unrivaled flexibility in configuration, stability and maneuverability, HMTs offer unmatched support of heavy cargo while meeting individual cargo size/weight specifications – ideal for oil rig modules, bridge components or industrial machinery transport.
Hydraulic modular trailers feature a modular design, consisting of interlocking units (or modules) which can be connected either end-to-end (longitudinally) or side-by-side (laterally). This modularity enables operators to tailor each trailer’s size and load capacity as necessary by adding or subtracting axle lines and trailer units, creating a versatile platform to meet the specific demands of heavy haul operations.
An HMT’s purpose is straightforward yet critical: safely transporting large, heavy loads. Their design incorporates features like swing axles, hydraulic suspension, and independently steerable axles that adapt the trailer’s suspension system and load capacity based on both terrain and load conditions – an invaluable feature that makes HMTs indispensable in industries where moving massive equipment or structural components is an everyday occurrence but challenging undertaking.
Hydraulic Modular Trailers (HMTs) are engineered with features designed to handle some of the toughest loads with ease, such as modular designs, hydraulic suspension systems, independent steering capabilities and Power Pack Units (PPUs). HMTs’ unique adaptability enables them to safely transport oversized cargo across varied terrains through complex routes without issue.
1. Modular Design
Hydraulic Modular Trailers feature a modular design offering greater customization and flexibility than traditional trailers. Each HMT comprises multiple interlocking modules that can be connected in various configurations to accommodate loads based on size, weight, shape, or complexity.
Longitudinally Connected Modules: When transporting cargo that requires an extended platform, multiple modules can be connected end-to-end (longitudinally). This configuration is perfect for moving long objects like bridge beams or wind turbine components that extend beyond normal vehicle dimensions.

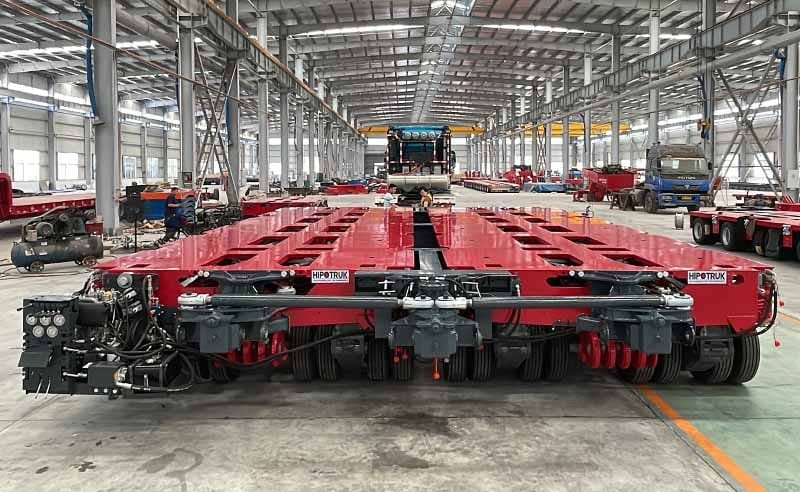

Lateral Connections: When cargo requires a wider platform or has an irregular shape, modules may also be connected lateral to each other for increased stability and support – perfect for items such as machinery or building sections that may need extra stability or support.
Modular trailer designs allow operators to tailor the trailer configuration precisely to each load’s specifications while still ensuring safety and stability. By adding or subtracting modules, HMTs can accommodate various cargo dimensions making them highly adaptable for heavy-haul applications.
2. Hydraulic Suspension
One of the hallmark features of hydraulic modular trailers is their sophisticated hydraulic suspension system, which ensures balance and stability on various terrains.
Height Adjustment: Each axle on an HMT trailer is equipped with hydraulic cylinders that enable it to independently adjust its height, making for convenient loading and unloading as well as level transport of goods. These hydraulic cylinders also permit each axle to raise or lower individual axles as necessary, providing convenient loading/unloading/transport.
Terrain Adaptation: The hydraulic suspension system is designed to adapt a trailer to uneven or sloped ground by compensating for variations in road surface variations and maintaining balanced load distribution across each axle individually, thus relieving stress from trailer frames and preventing cargo from shifting or becoming unstable.
Hydraulic suspension offers shock absorption to both its cargo and trailer from road vibrations and bumps, protecting both from possible damage during transit. This feature is particularly important when transporting fragile equipment or materials which could otherwise become damaged during transport.
Hydraulic suspension systems ensure HMTs can safely transport heavy loads over any terrain, offering additional protection to valuable or delicate cargo.
Hydraulic modular trailers feature independent steering mechanisms on every axle for increased maneuverability and control.
Precise Control: Each axle on an HMT trailer can be independently steered, enabling sharp turns and maneuvering through narrow spaces that would be impossible for conventional trailers. Hydraulic steering provides independent steering which can be adjusted from a central control panel for precise movements even with hefty loads.
Increased Maneuverability: Independent steering can be especially advantageous in complex routes such as urban environments or industrial sites with tight turns and narrow passageways, where tight turns and narrow passages are frequent. Being able to adjust each axle angle individually makes navigating these routes smooth while avoiding obstacles and maintaining trailer stability possible.
Optimized Load Stability: The steering system not only enhances maneuverability but also assists with load stability by evenly distributing load weight across axles and adjusting direction of each wheel – keeping your trailer stable even on uneven or inclined terrain.
HMTs feature independent steering for maximum flexibility and precision when transporting heavy loads along narrow or challenging routes. They make an ideal option for transporting cargo of any kind that is too big to fit on conventional trucks.
4. Power Pack Unit (PPU)
The Power Pack Unit is at the core of hydraulic modular trailer functionality, providing all of its hydraulic pressure requirements to power steering and suspension systems.
Hydraulic Power Source: A separate, self-contained power source called the Portable Power Unit (PPU) produces hydraulic pressure that drives key functions on a trailer such as steering and height adjustment allowing efficient and safe transport of heavy loads.
Real-Time Adjustments: With the PPU, operators can adjust a trailer’s height, steering angle and weight distribution to adapt to changing road conditions. They can easily make real-time adjustments for smooth loading/unloading or adapt to changes in terrain to keep their load balanced throughout their journey.
Safety and Stability: The PPU plays an integral role in ensuring the safety and stability of trailers by providing consistent hydraulic pressure that allows suspension and steering systems to function optimally, offering precise maneuvering control and balance.
The Power Pack Unit (PPU) is essential to making hydraulic modular trailers (HMTs) both operationally efficient and safe, providing operators with access to its essential hydraulic functions. Without it, an HMT would lack its adaptability and versatility that make it such an asset in heavy transport.
Hydraulic Modular Trailers (HMTs) are engineered from high-strength materials and complex systems for handling even the most demanding transport tasks, including extreme load conditions. Each component is carefully designed to maintain stability, balance, and control under extreme load conditions. Here, we explore four key components that comprise an HMT: its frame, hydraulic wheel bogie, steering system and Power Pack Unit (PPU).
1. Frame
The frame is the core structure of any hydraulic modular trailer and must provide strength and stability in order to transport heavy cargo safely. Its construction of high-tensile steel ensures it can withstand significant stress while remaining durable even under extreme loads.
High-Tensile Steel: Trailer frames are typically constructed of Q550 or Q690 high-tensile steel, which boasts an exceptional strength-to-weight ratio. This material provides structural integrity for large loads while being resilient against wear and fatigue, with highly resistant bending/deformation capabilities essential when transporting unevenly distributed or extraordinarily heavy cargo loads.
Core Stability: The trailer frame serves as its core structural support, helping keep its contents balanced during transport without tipping or shifting risks. Its robust construction even distributes load weight more evenly if coupled with other components like hydraulic suspension systems.
Modular Design Compatibility: Our frame was also created to be modular, enabling multiple units to be joined longitudinally or laterally and adjusted according to load requirements for precise customization and stability in transport operations.
2. Hydraulic Wheel Bogie
The hydraulic wheel bogie (HWM) is an essential element of an HMT, responsible for evenly distributing loads across its axles and providing stability on various terrains. Each unit includes a bogie frame, hydraulic cylinder, axle, tire and rocker arm – each working together to maintain balance while attenuating shocks.
Even Load Distribution: The hydraulic wheel bogie’s primary purpose is to ensure an even distribution of load across all wheels, thus relieving strain on individual axles and decreasing risk of axle or tire failure. Proper distribution also keeps trailers stable when traveling over uneven terrain.
Hydraulic Cylinders for Height Adjustment: Each wheel bogie on a trailer is equipped with hydraulic cylinders that enable operators to quickly and precisely adjust its height on an axle-by-axle basis. This feature makes adjusting to different road surfaces easy while still ensuring a level platform that keeps loads stable when traversing bumpy or sloped terrain.
Rocker Arm Mechanism: The rocker arm mechanism within a wheel bogie allows for controlled axle movement, improving its ability to adapt to rugged terrains. Furthermore, this additional layer of shock absorption minimizes vibrations while shielding loads against impact forces.
Hydraulic wheel bogies not only stabilize trailers, but they also enable each axle to adapt dynamically to road conditions – an essential feature for safe and efficient transport.
3. Steering System
Hydraulic modular trailers’ signature steering systems enable them to maneuver precisely even under extreme loads. HMTs usually utilize advanced mechanisms like ball bearing race rings or pivot bearings that enable wide turning angles with fine control over each axle’s movement.

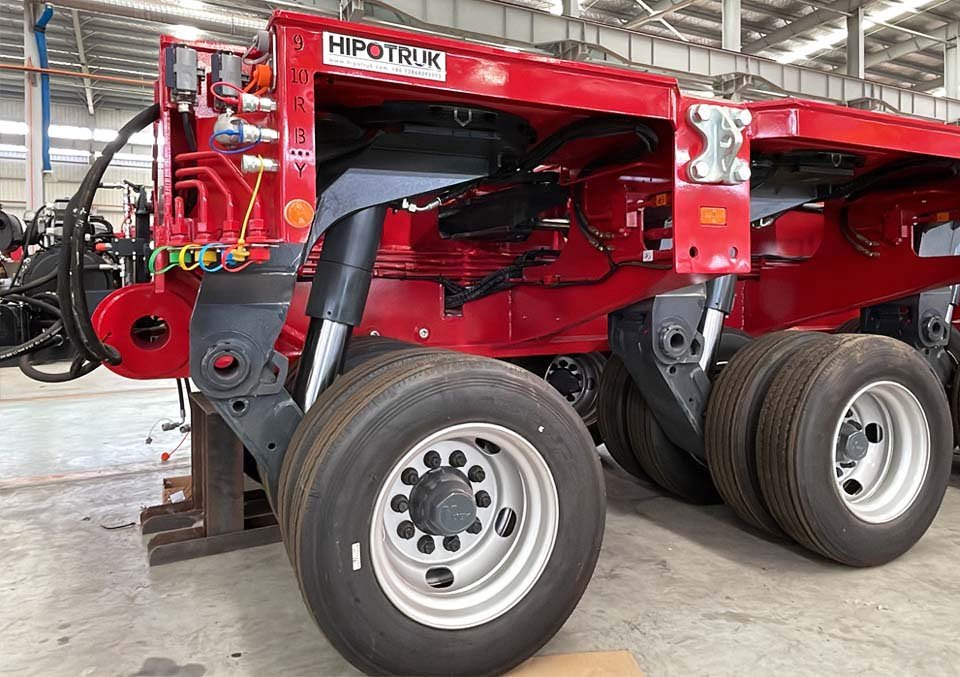

Ball Bearing Race Ring or Pivot Bearing: Many HMTs use either a ball bearing race ring or pivot bearing at each axle to facilitate steering. These bearings allow the axles to pivot, providing up to 45-55 degree turning angles – essential when transporting large cargo through urban or industrial environments.
Independent Axle Steering: HMT’s steering system allows each axle to be directed independently, offering greater control and precision than standard steering systems. Independent steering enables operators to make minute adjustments in wheel directions with greater accuracy, decreasing turning radius while improving maneuverability – this feature is essential when transporting large loads over narrow roads or restricted spaces.
Enhance Load Stability: Beyond optimizing maneuverability, steering systems also play a significant role in load stability. By individually adjusting each axle’s angle, they help spread out weight evenly and prevent shifting that would otherwise destabilize a trailer.
HMTs boast unmatched capability of safely navigating complex routes, enabling them to transport heavy loads with accuracy and stability. The steering system gives these vehicles a distinct edge when it comes to maneuvering through tight turns or complex routes.
4. Power Pack Unit (PPU)
The HMT’s Power Pack Unit (PPU) serves as its hydraulic power source, providing vital hydraulic pressure required for both steering and suspension systems to function smoothly. Without it, these parts of its operation would cease functioning, making the PPU an integral part of its operation.
Hydraulic Pressure Generation: The PPU produces hydraulic pressure that powers a trailer’s steering, suspension and height adjustment systems. Real-time adjustments of trailer height and axle steering help it adapt to changing road conditions more readily than before.
Control and Adjustment: With the PPU, an operator can manage various trailer functions from a central panel. Real-time adjustments of height and steering angles enable fine-tuning the configuration based on load requirements or terrain conditions – for instance raising or lowering it for loading purposes, or altering axle angles to navigate sharp turns more easily.
Safety and Stability: The PPU not only facilitates the operation of the trailer’s hydraulic systems but also plays a pivotal role in maintaining transporter safety and stability. By consistently applying hydraulic pressure, it ensures that trailer remains balanced, stable, and controlled through its journey even on challenging routes.
The Power Pack Unit is integral for operating the hydraulic systems that define a hydraulic modular trailer’s functionality, giving operators full control of height and steering adjustments and making heavy cargo transportation safe and effective.
Hydraulic Modular Trailers (HMTs) utilize advanced engineering and hydraulic power to safely transport loads. Each step, from module connection to precise steering control, has been meticulously planned out to ensure stability, adaptability, and control – with this information below outlining how a hydraulic modular trailer works to move heavy cargo effectively.
1. Connecting Modules
Hydraulic modular trailers have become popular due to their adaptable modular design, enabling operators to link multiple trailer units together to form custom platforms tailored for specific loads.
Modular Linkage: A trailer comprises multiple modules equipped with axles, hydraulic suspension and steering systems that can be combined in various combinations depending on cargo size and weight. Depending on its shape and length, these modules may be connected either end-to-end (longitudinally) for longer loads or side by side (laterally) for wider ones; this flexibility enables the trailer to meet individual cargo needs, providing each with a secure platform.
Customized Configuration: Operators can customize their trailer’s dimensions precisely by adding or subtracting modules, providing operators with complete control. For instance, long loads such as bridge beams may need an extended, longitudinal arrangement while larger equipment or sections of structures might require a wider, lateral setup. This adaptability ensures each load receives optimal platform support thus relieving stress on both trailer and cargo.
Locking Mechanisms: Each module is secured using locking mechanisms to ensure its stability during transport. Not only do these connections ensure structural integrity but they also function as a platform that distributes loads evenly among modules.
Connecting modules is the cornerstone of trailer preparation, as it tailors HMTs to meet specific load demands and thus making transport safer and more effective.
2. Load Distribution and Hydraulic Adjustments
Once assembled and loaded, the hydraulic suspension system plays an essential role in keeping all axles balanced by evenly dispersing weight across them.
Hydraulic Suspension System: Each axle on an HMT trailer is equipped with hydraulic cylinders that enable individual axles to independently adjust their height, helping ensure that loads remain level even while traveling over uneven terrain or slopes. By allowing independent height adjustments between axles, this suspension system helps distribute load more evenly while minimizing risk of tipping or instability.
Weight Distribution: The hydraulic suspension system automatically adjusts to evenly distribute cargo weight across all axles of a trailer, protecting both its contents and itself by avoiding excessive stress on any individual axle or tire. Balanced weight distribution also contributes to smoother transport by relieving strain on its structure and minimizing wear-and-tear wear on tires and axles.
Height Adjustments for Loading and Unloading: Hydraulic adjustments make loading and unloading heavy cargo simpler by enabling operators to easily raise or lower the trailer’s height as required, for instance when aligning loading platforms, or managing challenging road conditions; all while keeping cargo secure.
Hydraulic suspension systems are crucial in providing stability and protecting cargo, enabling HMTs to adapt dynamically to changing terrain and load requirements.
3. Steering Control
A distinguishing feature of hydraulic modular trailers is their advanced steering system, which offers precise control of each axle for superior maneuverability even with heavy and oversized loads.
Independent Axle Steering: HMTs offer unparalleled levels of control to their operators with independently steerable axles that allow each wheel to be adjusted independently, giving greater maneuverability for tight corners, narrow passageways and complex routes in urban or industrial settings where space may be at a premium. Independent steering provides greater precision in maneuvering around tight turns or tight passageways with ease – particularly useful in limited urban or industrial spaces where space may be scarcer.
Hydraulic Steering System: The Power Pack Unit (PPU) controls the hydraulic steering system. An operator can use a control panel to set steering angles of each axle for precise movements. With such precise maneuverability, operators are able to navigate sharp turns and intricate pathways while keeping their trailer and load secure.
Complex Route Navigating: Thanks to independently controlled axles, HMT trailers can perform complex maneuvers impossible with conventional trailers. Their precise control allows HMTs to transport oversized loads through routes with significant obstacles or restricted spaces with ease – providing solutions to otherwise challenging transport scenarios.
Hydraulic modular trailers equipped with advanced steering control systems can transport heavy loads safely and precisely over even the most challenging routes, providing exceptional cargo management capability.
4. Braking and Stability on HMTs
Given their heavy loads, reliable braking and stability control systems are absolutely crucial to safe operation of an HMT.
Robust Braking System: Hydraulic modular trailers come equipped with powerful braking systems designed to stop heavy loads smoothly and safely, without compromising their cargo’s stability or compromise the trailer itself. These brakes are often integrated with hydraulic suspension for increased reliability and control.
Stability Control: Stability controls go beyond simple braking systems to help maintain balance during turns, stops or when descending
slopes. By keeping loads from shifting unexpectedly they lower the risk of tipping or loss of control; vital for protecting both cargo and surrounding areas.
Controlled Deceleration: Transporting large loads can be dangerous if sudden stops are used as the only form of deceleration, so the braking system enables gradual deceleration to reduce strain on both trailer and load. Gradual deceleration also plays an integral part in maintaining stability on sloped or uneven terrain.
HMTs feature sophisticated braking and stability control systems to safely transport heavy loads under any condition, even under challenging ones. By combining reliable brakes with hydraulic stability control, they offer secure transport of large cargo.
Hydraulic Modular Trailers / HMTs
Hydraulic modular trailers (HMTs) can be configured in numerous ways depending on transport needs, load type, and route conditions. Here are the most frequently seen HMT configurations used within the industry:
Semi-Trailer with Gooseneck
In this configuration, an HMT is connected to a gooseneck mechanism – a coupling mechanism used to connect it with a tractor unit – providing for more stable coupling between the trailer and tow vehicle by dispersing some of its weight onto the front axle of the tractor unit. This setup offers enhanced stability and control on highway transport routes.
Advantages: This setup is ideal for loads requiring a lower loading height and better weight distribution, with its gooseneck providing sharper turns and more stable maneuvering for highway transport, where maneuverability and stability are paramount.
Applications: Semi-trailers equipped with gooseneck configuration are often preferred when transporting long loads, such as beams, pipes or other construction materials that require extra support or height control.
Full Trailer with Drawbar
A full trailer equipped with a drawbar configuration is an independent setup that uses the drawbar to connect directly with a towing vehicle, without transferring any load weight directly onto its axles and supporting structure – unlike with semi-trailers which pass any weight along to their tow vehicle’s suspension system. Instead, its axles remain supported fully for stable operation as an independent platform.
Advantages: The drawbar configuration offers increased versatility and can often be more suitable for shorter distances or specific industrial applications. It provides greater control over lateral stability, making it easier to navigate uneven surfaces without shifting load stress onto the towing vehicle.
Applications: This setup is commonly utilized in industrial settings, such as factories or ports, where a trailer must be operated independently of its primary towing vehicle.
Self-Propelled Modular Transporter (SPMT)
An SPMT trailer is an advanced form of a hydraulic modular trailer equipped with an integral power unit to enable independent operation without being attached to another towing vehicle. Each module of an SPMT has individual motorized axles that are controlled remotely, allowing precise control over movement in any direction.
Advantages: SPMTs offer maximum flexibility and control, enabling operators to maneuver even the heaviest loads with precision in tight spaces. Their 360-degree mobility makes SPMTs perfect for transporting heavy and large cargo on complicated paths – making them indispensable in areas where traditional towing setups would be impractical.
Application: SPMTs are ideal for industries like shipbuilding, construction and power generation where large components such as ship sections, turbines or entire building modules must be transported safely within controlled environments.
Configurations options give HMTs the versatility necessary for adaptability across a wide array of transport scenarios, meeting cargo requirements and conditions efficiently and safely.
Hydraulic Modular Trailers
Hydraulic modular trailers (HMTs) can be found across industries when large loads must be safely and efficiently transported, including those where heavy materials require transporting safely and quickly. Here are some key uses of HMTs:
Industrial Machinery Transport
Industries like manufacturing and mining often rely on large, complex machinery that is difficult to move due to its weight or size. Hydraulic modular trailers are frequently employed as transport mechanisms for these items such as assembly line equipment, mining excavators or industrial presses from one site to the next.
Example: Moving a massive mining excavator between sites requires an HMT for optimal stability and maneuverability on rough terrain.
Transport of Construction Components
Construction projects often necessitate transporting large structural components like bridge sections, steel beams and prefabricated building modules. Hydraulic modular trailers can be configured to safely accommodate such items while minimizing their risk of damage during transport.

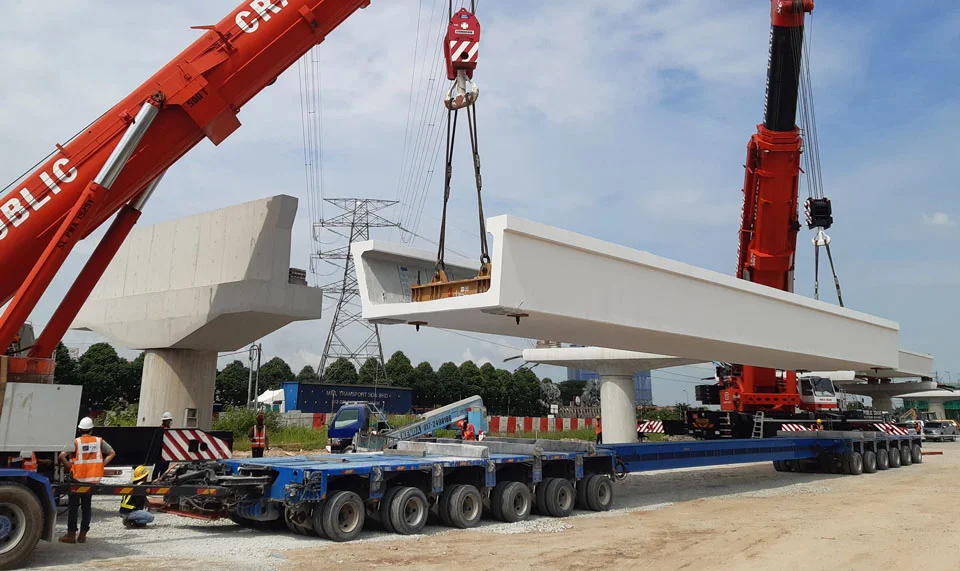

Example: Transporting precast bridge sections requires a custom HMT configuration that can support the load’s size and weight while remaining stable during transit.
Energy Sector
The energy industry often necessitates moving large, heavy components for power generation and distribution, such as transformers, wind turbine blades, and nuclear reactor components. Hydraulic modular trailers are an excellent solution as they can be tailored to securely carry irregular-shaped items.
Example: Transporting a transformer requires a trailer with enough suspension to manage rough terrain while evenly dispersing its weight, to ensure safe delivery of this heavy load.
Shipbuilding
HMTs are indispensable tools in shipbuilding for transporting large ship sections and heavy equipment around shipyards. Their self-propelled modular transporter (SPMT) configuration can provide accurate control and movement without relying on towing vehicles for control and movement of individual sections of ships.
An SPMT provides precise positioning that facilitates assembly and construction processes at shipyards.
These applications demonstrate the versatility and importance of hydraulic modular trailers in industries that rely on transporting heavy loads safely.
Hydraulic Modular Trailer Advantages
Hydraulic modular trailers provide numerous benefits when transporting heavy or oversized cargo, making them indispensable in industries reliant on large-scale transport solutions. Here are a few key advantages:
High Load Capacity
Hydraulic modular trailers (HMTs) are specifically designed to carry some of the heaviest loads imaginable – often reaching hundreds or even thousands of tons! Their modular design enables multiple axle lines, evenly dispersing weight across their framework, thus relieving any single point from excessive stress. Because of this high load capacity, HMTs make an excellent way of transporting cargo that traditional trailers cannot.
Versatile and Modular Design
One of the primary benefits of hydraulic modular trailers (HMTs) lies in their versatile modular design. By connecting multiple units longitudinally or laterally, operators can form customized platforms to match exactly to the dimensions of any load they transport. HMTs’ adaptable nature enables them to transport various load shapes and sizes ranging from long beams to wide machinery making them suitable for many different transport requirements.
Enhance Stability and Safety
HMTs feature hydraulic suspension systems which offer enhanced stability by enabling each axle to adjust independently, keeping balance on uneven terrain by evenly dispersing load weight distribution across axles, reducing tipping or shifting risks, while attenuating road shock absorption to protect both cargo and trailer from possible damages.
Precision in Maneuvering
Each axle’s independent steering provides precise control and tight navigation even with heavy or oversized loads. Operators can individually adjust each axle angle so as to guide it through narrow spaces, sharp turns and complex routes more effectively than conventional trailers would be capable of doing. This precision in maneuvering makes these trailers ideal for transporting cargo through urban environments or industrial sites with ease.
Hydraulic modular trailers offer multiple advantages that make them the perfect transport solutions for industries needing reliable, adaptable, and secure heavy haul solutions.
9. Conclusion
Hydraulic modular trailers (HMTs) are indispensable vehicles in industries that rely on safe and efficient cargo transportation. Their modular design, hydraulic suspension, independent steering and high load capacity make HMTs highly adaptable, stable and controllable solutions that offer unmatched adaptability, stability and control – whether for industrial machinery transporting industrial components such as construction components, energy infrastructure infrastructure or ship sections or simply being transported over long distances – being one solution to many complex transport challenges.
HMTs’ versatility enables operators to adjust them for any load’s individual specifications, ensuring both safety and efficiency in transit. By providing precision maneuvering and enhanced stability, HMTs reduce damage risk to cargo while improving overall operational safety. In industries where transporting massive loads is an everyday necessity, hydraulic modular trailers continue to offer reliable, flexible, and efficient haulage solutions.
