Transporting large, heavy, and oversized loads demands specialized equipment. In hydraulic modular trailers, vessel bridges play a crucial role in ensuring stability, safety, and load distribution. Understanding how vessel bridges work, as well as their dimensions, types, and advantages, can significantly enhance heavy-haul operations. This guide provides an in-depth look at vessel bridges and their essential role in modular trailer transport.

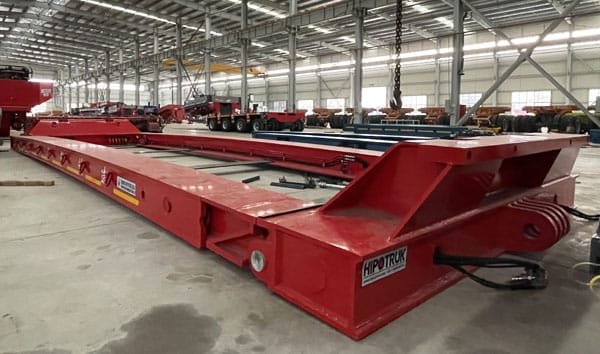

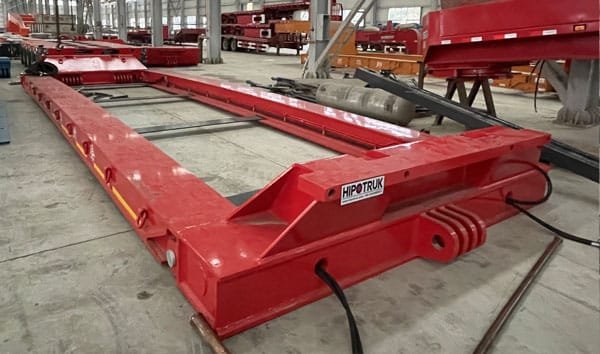

What is a Vessel Bridge? Definition and Purpose
Vessel Bridges: These specialized components are used in hydraulic modular trailers to facilitate the transport of oversized and heavy loads. Acting as connectors between trailer modules, vessel bridges distribute load evenly across axles, preventing structural strain and enhancing stability. They are essential for safely moving items like industrial vessels, heavy machinery, and large construction components.
Load Management: By managing weight distribution, vessel bridges reduce the risks of tipping or swaying, especially when transporting cargo with a high center of gravity. Effective load balancing is essential to protect both the cargo and the transport crew.
Typical Dimensions and Types of Vessel Bridges
Vessel bridges come in a variety of dimensions and types to meet diverse transport requirements.
Length and Width of Vessel Bridges:
- Length: Vessel bridges can vary significantly, often ranging from 3,000 mm to 9,000 mm (3 to 9 meters). This adjustability allows them to accommodate different load sizes and adapt to project-specific requirements.
- Width: The standard width for vessel bridges is typically around 2,990 mm to 6,000mm, matching the width of modular trailer systems to ensure compatibility and stability during transit.
Types of Vessel Bridges:
- Standard Vessel Bridges: Fixed-width bridges designed for common applications, ideal for transporting heavy equipment and industrial vessels.
- Extendable Vessel Bridges: Adjustable in length and width, these bridges are perfect for transporting longer items that exceed standard dimensions, providing flexibility for diverse cargo sizes.
- Girder Bridges: Designed for extremely heavy or bulky loads, girder bridges offer additional structural support and enhance load distribution and stability.
- Hydraulic Goosenecks: While not a vessel bridge per se, hydraulic goosenecks are often used alongside vessel bridges to offer additional height adjustment and flexibility in load positioning.
Integration with Hydraulic Modular Trailers
Vessel bridges are designed for seamless integration with hydraulic modular trailers, offering flexibility and adaptability for complex transport needs.
- Modular Design: Hydraulic modular trailers, such as the Goldhofer THP/SL series, are modular by design, allowing vessel bridges to be added or removed as needed. This flexibility lets operators customize configurations for specific types of cargo, making them ideal for various heavy haul projects.
- Hydraulic Mechanisms: Many vessel bridges feature hydraulic systems that enable precise height adjustments. These mechanisms help accommodate different load sizes while maintaining a low center of gravity, significantly reducing the risk of accidents during transport.
- Connection Points: Vessel bridges serve as secure connection points between trailer modules, allowing for quick assembly and disassembly while ensuring structural integrity throughout the journey.
Key Features of Vessel Bridges
Several key features make vessel bridges indispensable in the heavy transport industry:
- Adjustability: Many vessel bridges are adjustable in both length and width, allowing for customization to meet specific transport needs. This adjustability is especially useful for oversized or uniquely shaped loads.
- High Load Capacity: Built from high-tensile materials, vessel bridges are engineered to handle significant loads, often rated up to 100 tons to 200 ton , depending on the configuration.
- Compatibility: Vessel bridges are compatible with various modular trailer systems from manufacturers like Goldhofer, Scheuerle, and Cometto. This compatibility allows operators to mix components and adapt trailers based on project requirements.
Operational Advantages of Using Vessel Bridges
Incorporating vessel bridges into hydraulic modular trailer systems offers several operational benefits:
- Enhanced Maneuverability: Hydraulic modular trailers often feature 360-degree steering capabilities, and vessel bridges integrate seamlessly, enabling smooth navigation through tight spaces or complex job sites.
- Increased Safety: Advanced hydraulic systems in vessel bridges maintain load balance and provide a stable platform, essential for moving high-risk loads. Features like hydraulic suspension reduce the risk of load shifts, enhancing transport safety.
- Efficiency in Transport: Vessel bridges streamline operations by reducing the need for additional support vehicles or equipment, resulting in time savings and lower transport costs.
Applications of Vessel Bridges
Vessel bridges are essential for industries that require the transportation of oversized and heavy loads. Their flexibility and load-bearing capabilities make them suitable for several applications:
- Heavy Cargo Transport: Vessel bridges are crucial for industries that transport large equipment, such as power generation units, construction materials, and marine vessels. Their design accommodates high-weight, oversized cargo.
- Construction and Infrastructure Projects: In construction, vessel bridges allow for the quick and safe movement of large components, facilitating efficient logistics without compromising stability, which is particularly important in infrastructure projects.
Best Practices for Operating Vessel Bridges
Operating vessel bridges safely and effectively requires the following best practices:
- Regular Inspections: Inspect all components of the vessel bridge for any structural weaknesses or hydraulic leaks before and after transport.
- Balanced Load Positioning: Center the load and use hydraulic adjustments to maintain balance, especially for high-center-of-gravity items.
- Monitor Clearance Levels: Ensure that height and width clearances meet route requirements to avoid issues under bridges or through narrow passages.
- Operator Training: Operators should receive training specific to vessel bridges, as they require additional knowledge for safe handling and operation.
Summary: The Role of Vessel Bridges in Safe and Efficient Heavy Haul Transport
Vessel bridges are integral to hydraulic modular trailers, providing the necessary support, stability, and flexibility to transport oversized and heavy loads safely. With adjustable lengths ranging from 3,000 mm to 9,000 mm and a standard width of approximately 2,990 mm to 6000mm, vessel bridges offer customization options to accommodate various transport needs. Their robust construction and compatibility with leading modular trailer systems make them a valuable addition to any heavy transport operation.
Whether used in the construction, oil and gas, or industrial sectors, vessel bridges contribute to safer and more efficient operations, minimizing risks and costs. As technology advances, vessel bridge designs will likely continue to evolve, enhancing their functionality, durability, and adaptability in the world of heavy haul transport.
