Are you keen on understanding the structural features of Chinese telescopic trailers? Then you’ve come to the right place. Chinese telescopic trailers have emerged as a preferred choice due to their structural integrity, flexibility, and cost-effectiveness. But these trailers are built to handle the size and weight of wind blades.
Core Structural Components
Gooseneck: An Essential Trait

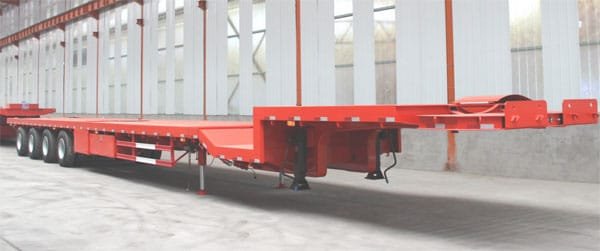

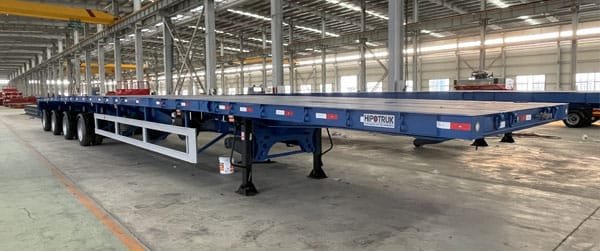

Chinese telescopic trailers for wind blade transportation have two variations: the Cranked Gooseneck and the Straight Gooseneck. The straight version features a front platform that aligns with the rear platform in height. However, the cranked version boasts a crank behind the front platform, allowing for a lower platform height at the rear.
Hydraulic gooseneck presents an additional advantage, allowing drivers to adjust the trailer’s height to suit different heights of the fifth wheel on tractors. Furthermore, when the truck steers, the hydraulic gooseneck signals the rear axles to steer, enabling tighter radius turns and enhanced maneuverability on curvy roads.
Chassis & Material: Ensuring Stability and Durability

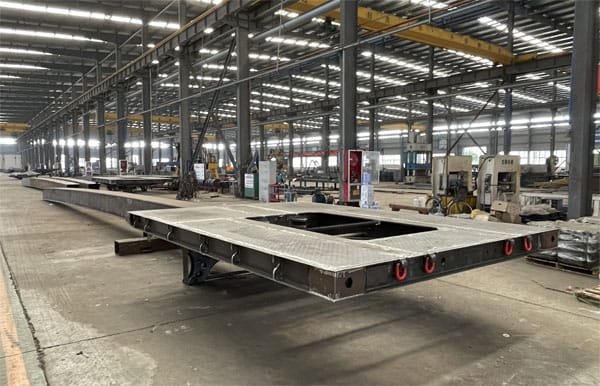

The chassis forms the foundation of the telescopic trailer, engineered to withstand the weight and dimensions of wind blades. It is built from tough-as-nails steel like HG60 or Q550 and promises to stay sturdy and steady while hauling. However, it is worth noting that some suppliers may utilize lower-quality steel, like Q456 or Q345, to reduce production costs and offer lower prices. Consequently, this compromise may result in the trailer’s telescopic beam sagging, significantly impacting its lifespan.
Extension Mechanism: Adapting to Varied Blade Sizes

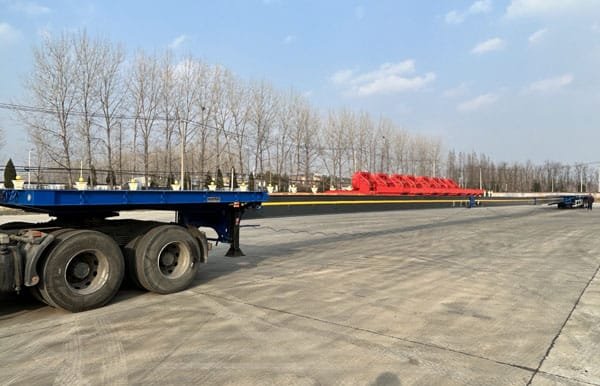

The heart of the telescopic trailer lies in its extension mechanism, which accommodates different blade sizes through a combination of hydraulic and mechanical systems. This system smoothly extends and pulls back, effortlessly adapting to the unique sizes of wind turbine blades.
Axles and Tires: A Matter of Compliance and Load Capacity

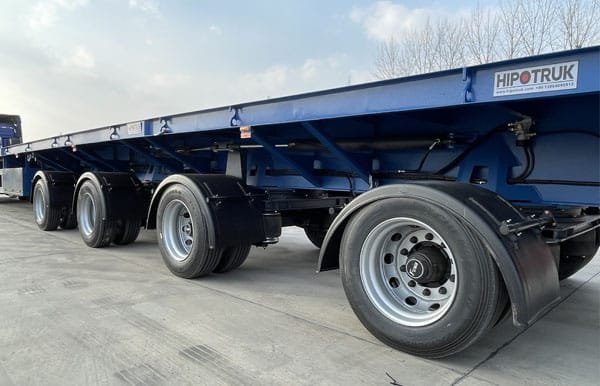

The number of axles required is dictated mainly by the regulations imposed in different countries. In addition to the existing 3-axle, 4-axle, and 5-axle telescopic wind blade trailers, there are also options with 6, 9, and 10-axle for flatbed trailers, low-loaders, and custom-built configurations. To haul those massive wind blades, you’ve got options like 3, 4, 5, 6, 9, and 10-axle flatbed trailers and lowboys that let you pick the right combo of load capacity and wheelbase to follow local regs, while tires from 275 to 12R handle your platform height and weight needs.
Regarding tires, the choice depends on the load and platform height requirements. You’ve got options galore with sizes like 275/80R22.5, 215/75R17.5, 235/75R17.5, 11R22.5 and 12R22.5 to match your specific needs.
Loading Platform: Ensuring Secure Blade Transit

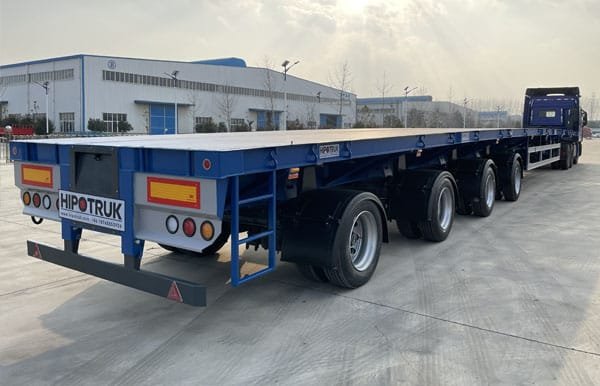

The loading platform, responsible for securing wind blades, typically spans around 20 meters in length. The trailer has particular parts to keep the blades steady and lower risks while shipping them.
Kingpin and Landing Gears: Connecting and Stabilizing the Trailer

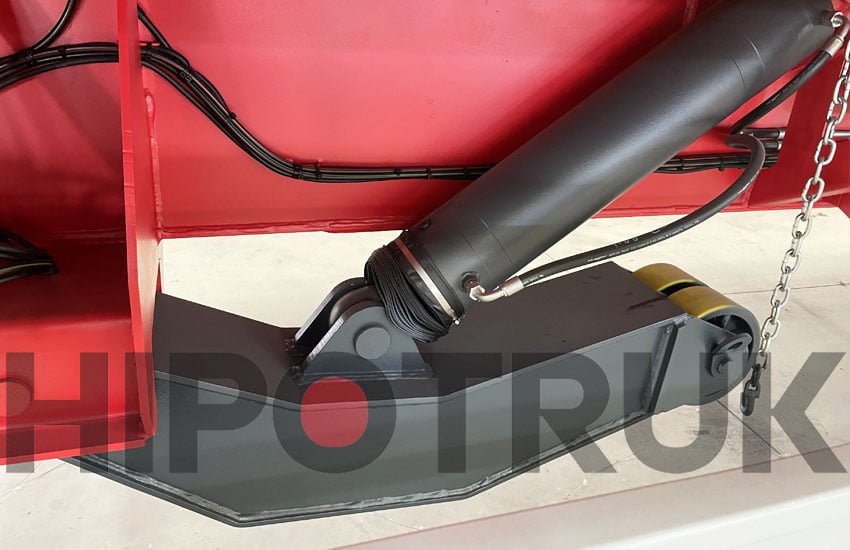

The kingpin, available in 3.5-inch or 2-inch variants, is crucial for connecting the trailer to the tractor unit. Landing gears, mechanical and hydraulic, serve this purpose efficiently and play a vital role in keeping the trailer steady when it’s not hitched to the tractor unit.
Advanced Features
Steering Systems
Steering systems play a critical role in wind blade transport by offering pinpoint control and navigation, even in tight spaces and rough terrain.
With a top-notch steering system, you can precisely steer through narrow spaces and tricky terrains to ensure the safe haul of wind blades. Three main steering systems are prominent in Chinese telescopic trailers designed for wind blades:
- Hydraulic Turntable Steering:
- With a big turning angle (25° to 45°), this steering system really improves the nimbleness of telescopic wind blade trailers.
- It curbs the need for frequent maintenance and limits tire wear, perfectly marrying productivity with cost-effectiveness.
- Depending on axle loads and transportation needs, one can choose between mechanical spring and air suspensions. The latter boasts a raise-and-lower platform function.
- Hydraulic Steering Axles:
- Hydraulic steering axles facilitate smooth movement around tight corners with their generous steering angle.
- As the truck turns, the gooseneck sends a signal to the rear steering axles, coordinating their movement. But these axles also help the trailer turn better, wear out the tires less, and last longer.
- In addition, they’re designed with the handy ability to tweak the platform’s height, adding a touch of ease to the whole deal.
- Hydraulic Bogies:
- Hydraulic bogies, or hydraulic suspension, are commonly employed in multi-axle modular trailers.
- With an impressive steering angle of up to +/-55°, these bogies minimize the turning radius and enhance the trailer’s agility. Moreover, they allow for height adjustment of the cargo platform.
- However, it must be noted that hydraulic suspension is more expensive than turntable steering and hydraulic steering axles. The latter options are more economically viable unless a lower platform height is mandatory.
Suspension Systems

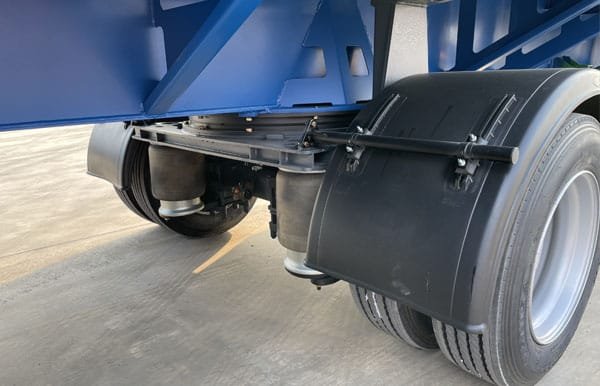

Like those in multi-axle modular trailers, a hydraulic suspension system delivers better agility and adjustable platform height but can be pricier than other steering alternatives. The telescopic suspension absorbs shocks to protect the blades during transport.
The job of the suspension system is pretty important; it soaks up all those bumps and shakes during transport, keeping wind blades safe from any possible harm. Picking the right suspension for your wind-blade trailer is all about what it can carry, how local traffic laws roll, and how much cash you’re willing to drop. Standard options available for telescopic wind blade trailers include leaf spring mechanical suspension, air ride suspension, and hydraulic suspension. HIPOTRUK telescopic Wind Blade Trailers mainly adopt air suspension due to its affordability, durability, ease of maintenance, and exceptional capability to withstand rough road conditions.
Braking System
Safety is paramount given the substantial load and critical nature of wind blade transportation. It is advisable to opt for trailers equipped with superior safety features such as WABCO emergency relay valves and anti-lock braking systems (ABS). These safety features significantly reduce the chance of skidding and ensure that the wind blades stay put during transport.
HIPOTRUK – Pioneering Wind Blade Trailer Manufacturer in China
HIPOTRUK is one of the leading manufacturers of Chinese telescopic windblade trailers. In the business of building trailers for transporting wind blades, HIPO has carved out a top spot for itself. Let’s delve into a brief overview of the available types of HIPO telescopic wind blade trailers:
HIPO 4 Axles 62 Meters Telescopic Flatbed Trailer
This model is specifically designed to prioritize maneuverability and durability. Equipped with turntable steering, it minimizes wear on tires, wheels, and suspensions, ensuring smooth navigation through winding roads. The telescopic decks, including the gooseneck, extend up to an impressive 62 meters in total length. This makes it an ideal choice for hauling wind blades and other long loads ranging from 60 to 80 meters.
HIPO 4 Axles Telescopic Trailer (70 Meters Wind Blades)
This trailer boasts triple telescopic decks extending up to 56 meters, enabling it to accommodate wind turbine blades ranging from 45 to 70 meters. The hydraulic turntable steering ensures easy maneuverability, even on narrow streets, and allows real-time adjustments during transport. Capable of hauling loads between 40 and 60 tons, this trailer is engineered for maximum transport efficiency, making it a reliable choice for oversized loads.
HIPO 5 Axles Telescopic Wind Turbine Blade Trailer
Designed to meet strict local road regulations, this model features three- to four-times extension capability, allowing it to transport windmill rotor blades up to 70 meters long. Its advanced design includes front axles that can be lifted and a robust hydraulic turntable steering system with a steering angle of 25-35 degrees. This combination of features ensures compliance, efficiency, and adaptability for various transport scenarios, especially on a budget.
HIPO 6 Axles 62 Meters Wind Blade Telescopic Flatbed Trailer
As wind turbine blades grow larger and heavier, this model’s three-section telescopic decks are designed to handle blades ranging from 60 to 85 meters in length. Featuring a hydraulic gooseneck and a turntable steering system with a 35-degree steering angle, this trailer ensures tight cornering and smooth navigation on narrow streets. Its robust build makes it suitable for challenging transport conditions while maintaining exceptional performance.
8 Axles – 10 Axles Extendable Windmill Turbine Blade Trailer
These specialized trailers are designed to meet axle load restrictions in countries with strict transport regulations. Available in 8-axle or 10-axle configurations, they are essential for transporting heavy loads. For instance, if a region permits a maximum of 10 tons per axle and the cargo weighs 80 tons, an 8-axle trailer becomes necessary. These trailers can extend up to 63 meters with a four-fold extension and retract to 24 meters when closed. Capable of carrying wind tower blades measuring 70 to 80 meters and weighing 20 to 30 tons, they feature hydraulic suspension systems for exceptional agility and tight cornering. This makes them ideal for quickly and precisely handling massive wind blades or sections of wind towers.
