Introduction
Hydraulic modular trailers have become indispensable in the heavy transport industry, offering unparalleled flexibility, efficiency, and safety. As a purchasing manager, understanding the key features, benefits, and considerations when investing in these trailers is crucial. This comprehensive guide will delve into the world of hydraulic modular trailers, providing you with the knowledge and insights needed to make informed decisions.
What is a Hydraulic Modular Trailer?
Hydraulic modular trailers are specialized transport vehicles designed to handle heavy and oversized loads across various terrains. These trailers feature a hydraulic system that allows for adjustable height and load distribution, making them highly adaptable to different cargo types and environments.
Key features of hydraulic modular trailers include:
- Modular design for customizable configurations
- Hydraulic suspension for smooth and stable transport
- Steerable axles for enhanced maneuverability
- High load capacity and adjustable dimensions
Hydraulic modular trailers find applications in numerous industries, such as:
- Construction and infrastructure projects
- Oil and gas industry
- Wind energy sector
- Heavy machinery transport
- Plant relocations and industrial moves
Types of Hydraulic Modular Trailers
There are several types of hydraulic modular trailers designed to cater to specific transportation needs:
- Heavy-Duty Hydraulic Modular Trailers
- Recommended models: HIPOTRUK HBG1, Goldhofer THP/SL
- Ideal for transporting extremely heavy loads
- Built to handle demanding off-road and industrial applications
- Loading capacity up to 45 tons per axle
2. Light-Duty Hydraulic Modular Trailers
- Recommended models: HIPOTRUK HBN3, Nicolas MDE/MDED
- Suitable for lighter loads
- Often used in plant operations and environments requiring maneuverability and precision.
- Loading capacity up to 30 tons per axle

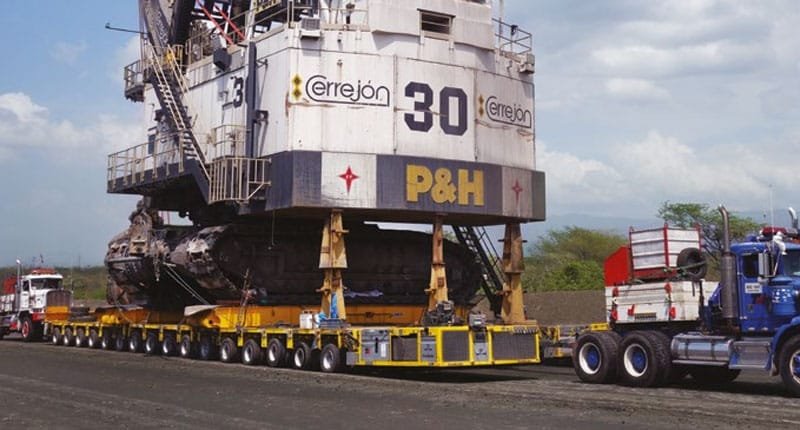

3. Self-Propelled Modular Transporters (SPMTs)
- Self-powered and highly versatile
- Perfect for transporting heavy and oversized loads in complex environments or plant operations
- Offer excellent maneuverability and control
Quiz Interaction 1
What is the primary advantage of using hydraulic modular trailers?
a. Low cost
b. Flexibility and adaptability
c. High-speed
d. Lightweight design
Answer: b. Flexibility and adaptability
Key Specifications to Consider
When evaluating hydraulic modular trailers, it’s essential to pay attention to the following key specifications:
- Number of Axles and Load Capacity
- Hydraulic modular trailers are available in various configurations, with two, three, four, five, six, and eight-axle units.
- Depending on the trailer model and design, each axle has a loading capacity of 45 tons.
- Multiple units can be coupled longitudinally and laterally to transport heavier loads, providing flexibility in load distribution.
2. Steering Capability
- Hydraulic modular trailers offer excellent maneuverability, with a steering capacity ranging to 55 degrees.
- The steering system is hydraulically operated. Each axle has an individual steering rod connected to the main steering cylinder at the front end of the trailer.
- This allows all axles to steer simultaneously in the same direction, enhancing the trailer’s ability to navigate tight spaces and challenging terrains.
3. Suspension System
- The suspension system in hydraulic modular trailers ensures a smooth and stable ride, even when transporting heavy and oversized loads.
- Each axle has an individual suspension cylinder, providing independent suspension for optimal load distribution and shock absorption.
- The suspension cylinders are hydraulically operated, with the hydraulic fluid flowing through hose pipes from the hydraulic tank located near the Power Pack Unit (PPU).
4. Power Pack Unit (PPU)
- The PPU is responsible for powering the hydraulic modular trailer’s steering and suspension systems.
- It generates about 18 to 25 horsepower and is available in diesel and petrol variants from renowned brands like Kohler, Yanmar, and Hatz.
- The PPU ensures the efficient and reliable operation of the trailer’s hydraulic systems, enabling precise control and smooth functioning.
5. Axle Configuration and Platform Design
- The axle configuration and platform design significantly affect the trailer’s load-bearing capacity and stability.
- One row of axles typically consists of two turntables, two knees, two suspension cylinders, and four to eight wheels attached to a high-strength metal platform.
- The trailer’s robust construction and well-engineered design ensure that it can safely and efficiently transport heavy loads across various terrains.
- Coupling Options
- Hydraulic modular trailers can be coupled with a tractor unit for pushing and pulling using either a gooseneck or a drawbar coupling.
- Gooseneck couplings are the most common in the industry. They offer easy connection to conventional tractors and hydraulic height adjustment. However, they are limited in terms of payload and configuration options.

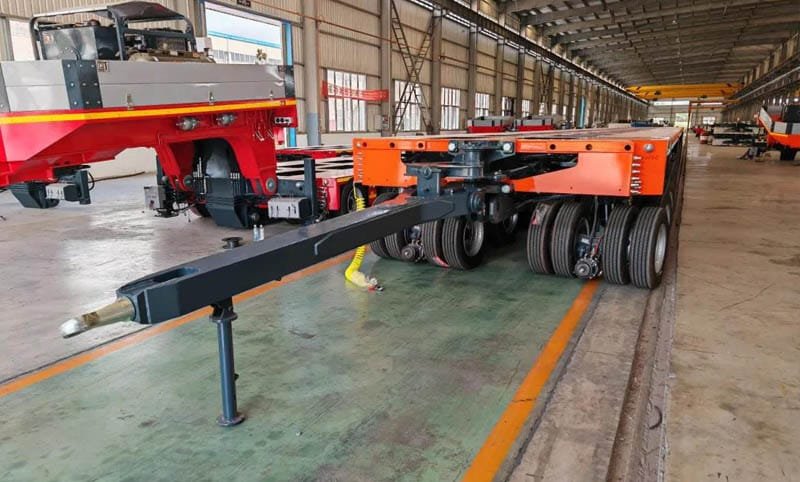

- Drawbar couplings, on the other hand, are more versatile and economical. They allow for side-by-side and push-pull configurations but require a ballast tractor with a ballast box and tow hitches.
7. Modular and Customizable Design
- Hydraulic modular trailers are designed to be highly modular and customizable, enabling them to adapt to various transportation needs.
- Multiple units can be interconnected longitudinally using pins and interconnecting couplings mounted in the center of the chassis, while lateral connection is achieved through bolts on the chassis sidewalls.
- This modular design allows for the creation of larger trailer combinations to accommodate heavier and more complex loads.
Quiz Interaction 2
Which of the following is NOT a key specification when evaluating hydraulic modular trailers?
a. Number of axles and load capacity
b. Steering capability
c. Suspension system
d. Color options
Answer: d. Color options
Choosing the Right Combination and Accessories
To accommodate various cargo types efficiently, selecting the appropriate combination of modular trailers and accessories is essential. Common combination forms and accessories include:
- Gooseneck: Balances the load and improves steering, which is ideal for most applications.
- Drawbar: Suitable for transporting overweight goods at low speeds and when more steering angle is required.
- Drop Deck: Perfect for carrying tall items under bridges or power lines.

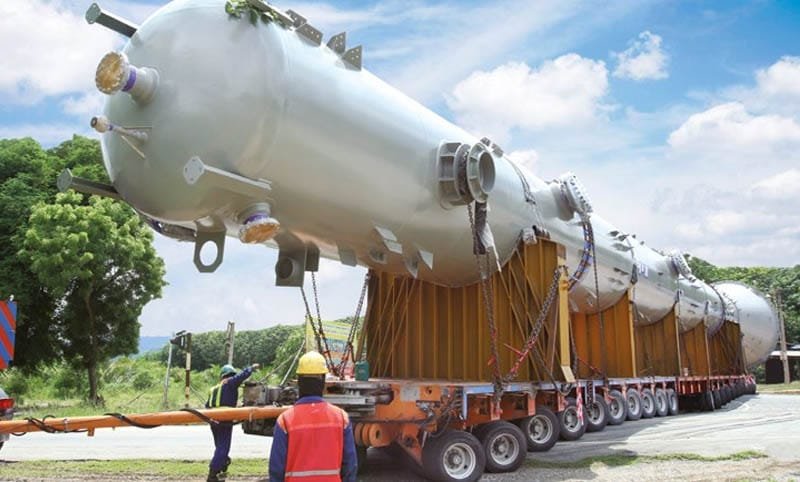

- Vessel Bridge: Adjustable width and length for moving large tanks, train units, or equipment.
- Intermediate/Extendable Spacers: Lengthen the trailer to accommodate longer items like wind turbine blades or long tanks.
- Excavator Deck: Specialized platform for securely transporting construction machinery.
- Turntable (Bolster) Combination: Enhances maneuverability for long and heavy loads.
Explore more hydraulic modular trailer accessories here.
Benefits of Using Hydraulic Modular Trailers
Investing in hydraulic modular trailers offers numerous advantages:
- Enhanced Stability and Maneuverability: The hydraulic suspension and steerable axles provide excellent stability and maneuverability during transport, ensuring safe and efficient operations.
- Flexibility in Load Configurations: The modular design allows for customizable configurations to accommodate a wide range of cargo types and sizes, making these trailers highly versatile.
- Improved Safety and Efficiency: Hydraulic modular trailers are designed with safety in mind, featuring robust construction and advanced features that minimize risks and optimize transport efficiency.
Quiz Interaction 3
What is the maximum steering angle of the HIPOTRUK HPG1 modular trailer?
a. ±45°
b. ±50°
c. ±55°
d. ±60°
Answer: c. ±55°
Comparative Analysis of Leading Brands
To help you make an informed decision, here’s a comparative table of leading hydraulic modular trailer brands:
| Feature | HipoTruk HBG1 | Goldhofer THP/SL | Nicolas MDE/MDED |
|---|---|---|---|
| Max. Load Capacity | 45 tons/axle | 45 tons/axle | 34 tons/axle |
| Axle Configuration | 2-10 axles | 2-10 axles | 2-10 axles |
| Steering Angle | ±55° | ±55° | ±55° |
| Suspension Stroke | 600 mm | 600 mm | 600 mm |
| Hydraulic Power Pack | Diesel Engine, Kohler | Diesel Engine, Kohler, or Hatz | Electric/Diesel |
| Average Price Range | $20,000 – $200,000 | $60,000 – $600,000 | $50,000 – $500,000 |
Quality and Performance Testing
Ensuring the quality and performance of hydraulic modular trailers is paramount. Reputable manufacturers like HipoTruk employ rigorous testing procedures, including:
- Seven-day driving tests to assess overall quality and performance
- Steering axle functionality checks
- Operational sound inspections
- Oil leak inspections
- Load tests with heavy stones to verify load capacity
Manufacturers should comply with stringent national quality and safety standards to guarantee the reliability and safety of their products.
Budgeting and Cost Considerations
When budgeting for hydraulic modular trailers, balancing quality and price is crucial. While extremely low prices may be tempting, they often indicate lower quality, especially in the Chinese market. Investing in quality trailers from reputable manufacturers can save you from frequent repairs, maintenance, and replacements in the long run.
Consider the following tips:
- Be cautious of prices 20% lower than the market average, as they may signal poor quality or scams.

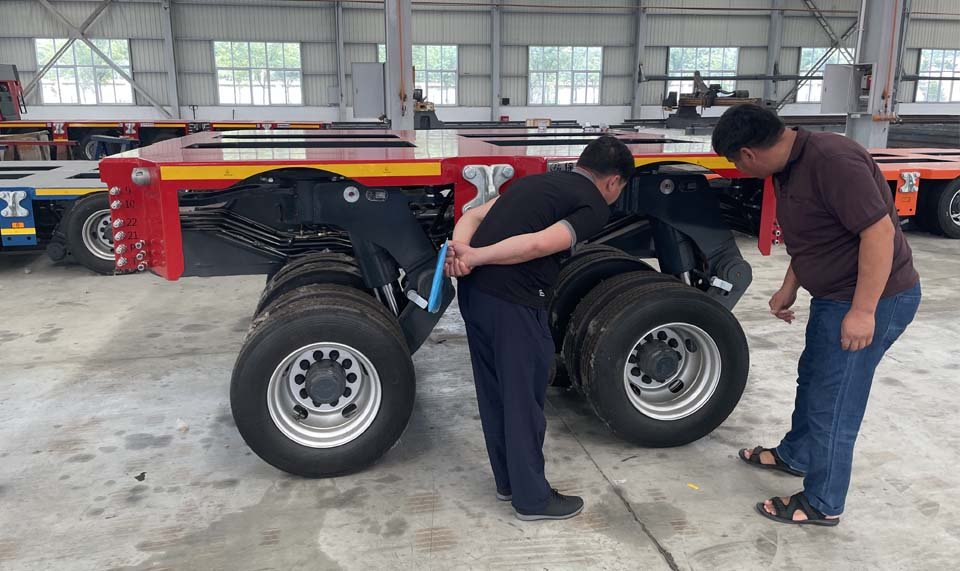

- Visit the factory to inspect the products personally before making a purchase.
- Adjust your budget to prioritize product quality, as it can lead to greater satisfaction and fewer issues.
Quiz Interaction 4
When budgeting for hydraulic modular trailers, it is recommended to:
a. Always choose the lowest price
b. Prioritize quality over price
c. Ignore maintenance costs
d. Avoid reputable suppliers
Answer: b. Prioritize quality over price
Importance of Choosing a Reputable Supplier
Working with a reputable supplier is essential to ensure you receive a high-quality product that meets your specific requirements. A trusted supplier can:
- Help you understand the differences between modular trailer types and their features
- Recommend the best model for your needs
- Provide comprehensive warranty and reliable customer support
When choosing a supplier, consider their industry experience, customer testimonials, and after-sales services.
Maintenance Tips for Optimal Performance
To ensure the longevity and optimal performance of your hydraulic modular trailers, follow these maintenance tips:
- Conduct regular checks of the hydraulic system for leaks or wear
- Lubricate moving parts as per the manufacturer’s recommendations
- Inspect the structural integrity of the trailer, including welds and joints
- Ensure proper functioning of the braking system
- Keep the trailer clean and store it in a dry, covered area when not in use
Real-World Case Studies
Hydraulic modular trailers have been successfully utilized in various projects worldwide. Here are a few notable case studies:
- Wind Turbine Transport in Germany: A leading wind energy company utilized Goldhofer THP/SL trailers to transport massive wind turbine components across challenging terrains, showcasing the trailers’ versatility and strength.
- Oil Refinery Expansion in the Middle East: HIPOTRUK HBG1 trailers were employed to move heavy equipment and machinery during an oil refinery expansion project, demonstrating their reliability in harsh environments.
- Bridge Construction in the United States: Contractors relied on self-propelled modular transporters (SPMTs) to transport prefabricated bridge sections, minimizing traffic disruptions and expediting construction.
These case studies highlight hydraulic modular trailers’ diverse applications and benefits in real-world scenarios.
Quiz Interaction 5
How long can a well-maintained hydraulic modular trailer last?
a. 5-10 years
b. 10-15 years
c. 15-20 years or more
d. 20-25 years
Answer: c. 15-20 years or more
Frequently Asked Questions (FAQs)
- What is the maximum load capacity of hydraulic modular trailers?
- The maximum load capacity varies depending on the trailer model and axle configuration. Heavy-duty trailers like the HIPOTRUK HPG1 and Goldhofer THP/SL can handle up to 45 tons per axle, while light-duty trailers like the HIPOTRUK HPN3 and Nicolas MDE/MDED have a capacity of up to 34 tons per axle.
2. Can hydraulic modular trailers be customized to suit specific requirements?
- Yes, hydraulic modular trailers offer a high degree of customization. Manufacturers can tailor the trailer configuration, accessories, and features to meet specific transportation needs.
3. How do I determine the right type of hydraulic modular trailer for my project?
- Consider factors such as the load capacity, dimensions, and weight of your cargo, as well as the terrain and environment in which the trailer will operate. Consult with a reputable supplier to discuss your requirements and receive expert recommendations.
4. What is the average lifespan of a hydraulic modular trailer?
- Proper maintenance and care ensure that a high-quality hydraulic modular trailer lasts 15-20 years or more. Regular servicing and adherence to the manufacturer’s guidelines can significantly extend the trailer’s lifespan.
5. Are hydraulic modular trailers suitable for off-road applications?
- Yes, many hydraulic modular trailers, particularly heavy-duty models, are designed to handle off-road and challenging terrains. They feature robust construction, high ground clearance, and advanced suspension systems to ensure stability and performance in demanding conditions.
Conclusion
Hydraulic modular trailers are a game-changer in the heavy transport industry, offering unmatched flexibility, efficiency, and safety. As a purchasing manager, understanding the key features, benefits, and considerations is essential to making informed decisions when investing in these trailers.
You can ensure that your transportation needs are met with the highest quality and reliability by choosing the right type of trailer, selecting the appropriate combination and accessories, and working with a reputable supplier like HIPOTRUK.
Don’t settle for less when it comes to your heavy transport requirements. Invest in top-quality hydraulic modular trailers and experience the difference they can make in your operations. Contact HipoTruk today to discuss your specific needs and take the first step toward optimizing your transportation capabilities.
