HIPOTRUK G1 MODUALR TRAIERS
MAKE YOUR BUDGET GO FURTHER WITH OUR TOP-PERFORMING HYDRAULIC MODULAR TRAILER
Manufacturing experience
Completed
From Worldwide
Client satisfaction rate

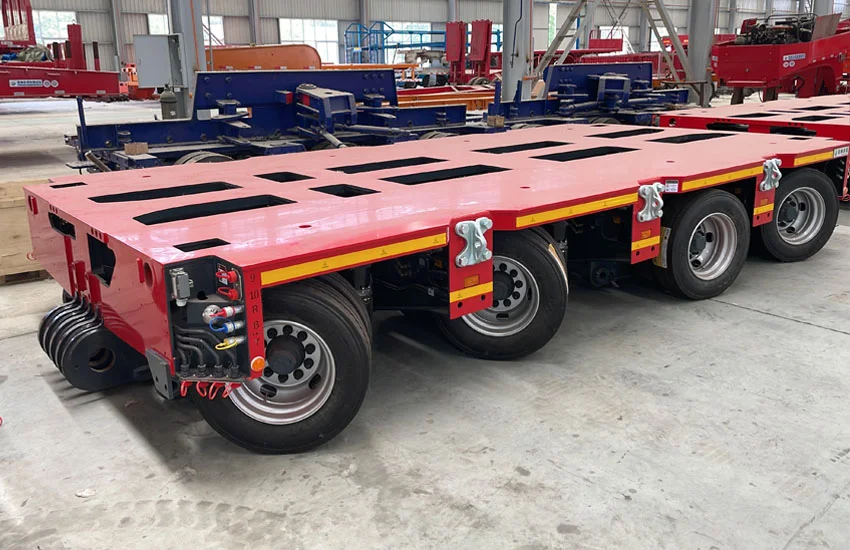

HPG1 Modular Trailer , 45 ton per axle
We respect original intellectual property and have learned from the European brands—to develop and manufacture our own HPG1 modular trailer. This model can seamlessly combine with the European brands series, including the Split version (1 + 1/2, side by side in 3 or 4 files), to transport oversized height, width, and weight cargo.
HPG1 Modular Trailer, with a load capacity of 45ton/axle per line, features an adjustable height of 1,175 ± 300 mm and a width of 2,990 mm, as well as a ± 55° steering angle. Constructed from Q690 high tensile structural steel, ensures a robust and durable construction with high bending moment, and high concentrated load-bearing capacity.
We won’t say that our Hipotruk HPG1 is better than the European brands. However, we can say that our HPG1 is as good as the European brands. And the most important is you don’t need to pay so much for European brands when you only need to spend around 30%-40% of that cost to buy an HPG1 of the same quality and performance as a European brand, which is more than enough for anybody. So why not try modular trailer made by China HIPOTRUK? It will significantly reduce your operation costs, enhance your business, and also change your perspective on what equipment is made in China.
HPG1 Features
- Fully compatible with the European modular trailers.
- HPG1 trailer parts are interchangeable with European brands parts.
- Strong main frame design supports heavy, concentrated loads.
- Choice of (Kohler) or China diesel engines.
- Maximum steering angle of 55° for the first axle-line.
- Maximum capacity of 45 tons per axle-line.
- Hydraulic accumulator and jack ensure smooth movement with a 600mm lift range.
- Unique slew bearing for connecting chassis and suspension.

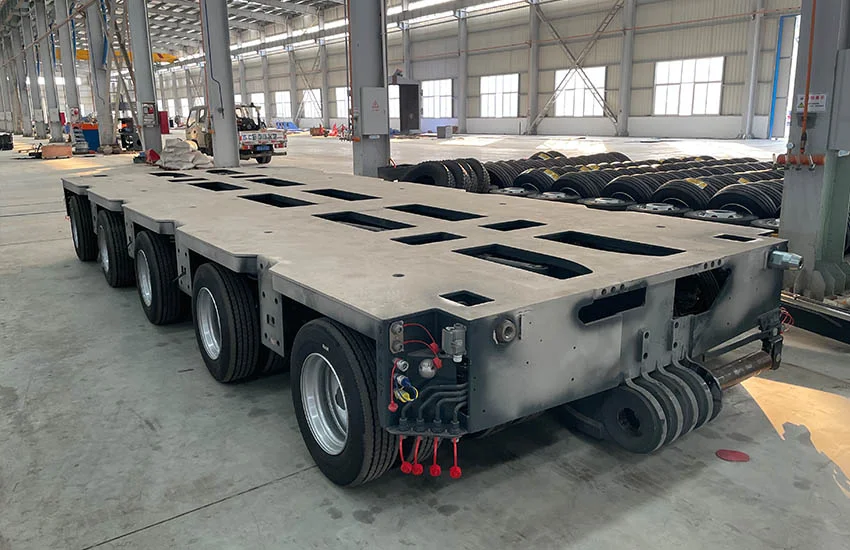

- Integrated air and hydraulic tanks in the chassis frame.
- Compact power pack option for more cargo space on the deck.

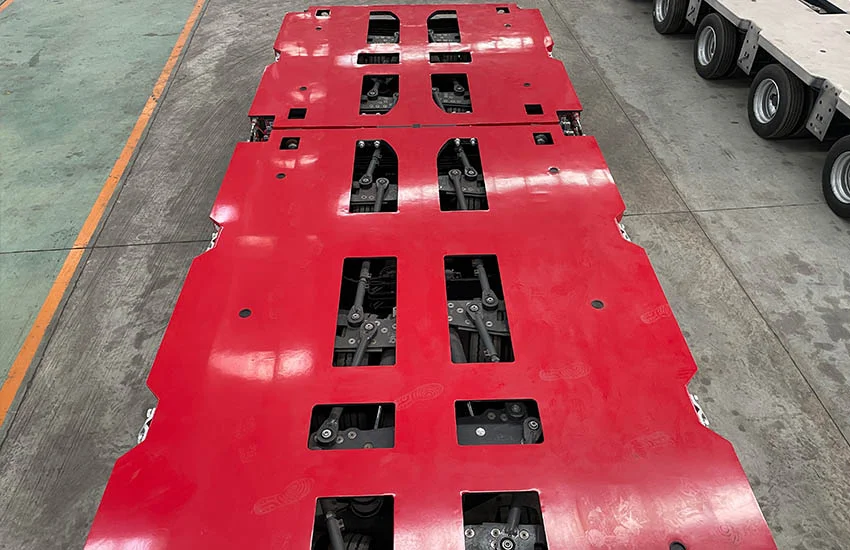

- Internal steering cylinders offer robust steering power.
- Overflow valve for hydraulic system protection against leaks.

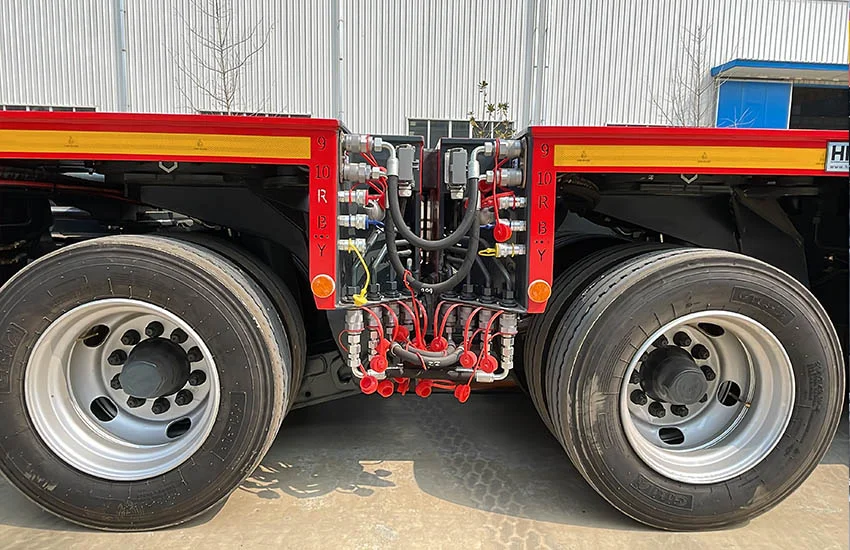

- Comprehensive four-way piping for optimal module combination.
Get a Quote
Contact us 24×7 to answer your questions and requirements.
POPULAR PRODUCTS
HIPOTRUK HPG1 MODULAR TRAILER

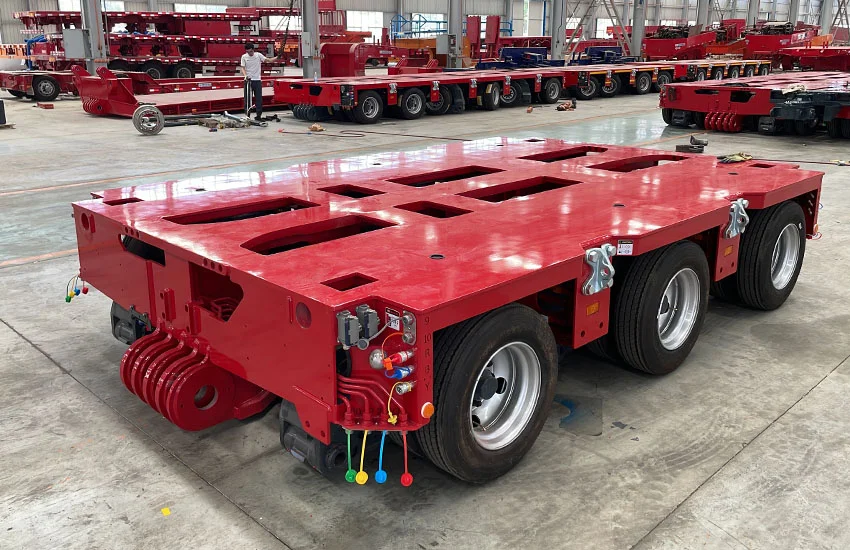

HIPG1 3 Axle
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 4,500 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control
HPG1 4 Axles
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 6,000 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control

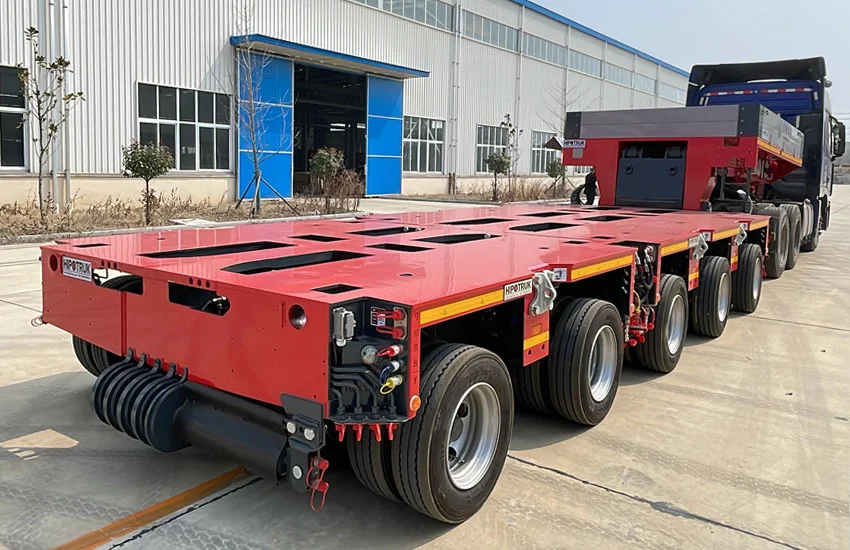

HPG1 5 Axles
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 7,500 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control

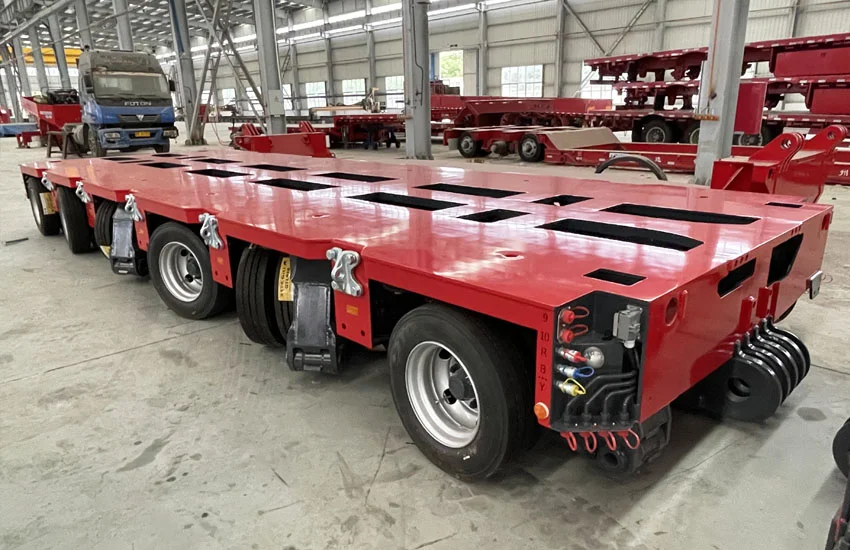

HPG1 6 Axles
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 9,000 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control

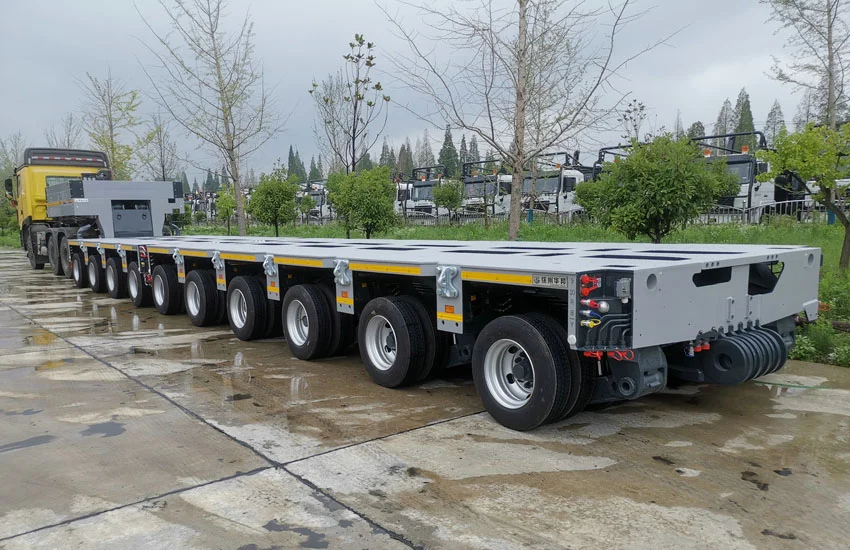

HPG1 10 Axles
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 15,000 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control
HPG1 12 Axles
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 18,000 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control

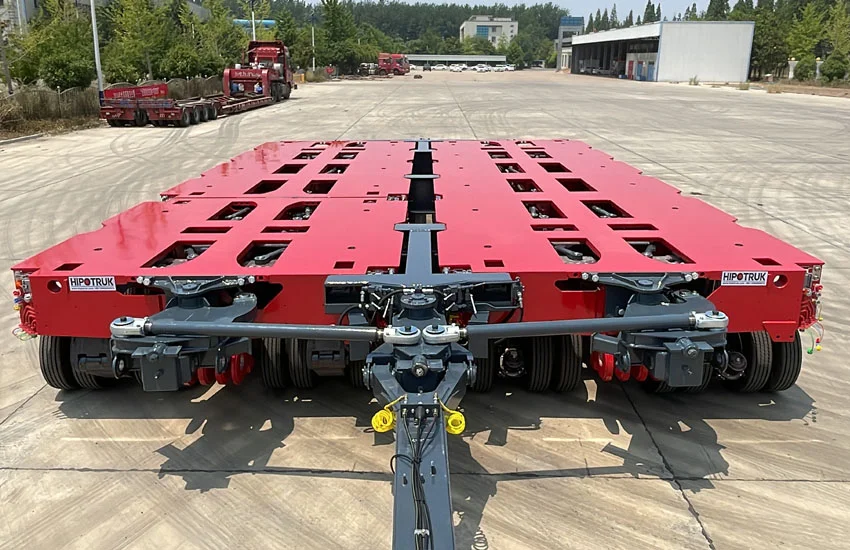

HPG1 4 File Modular
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 9,000 mm
- Vehicle Width: 6,500 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control

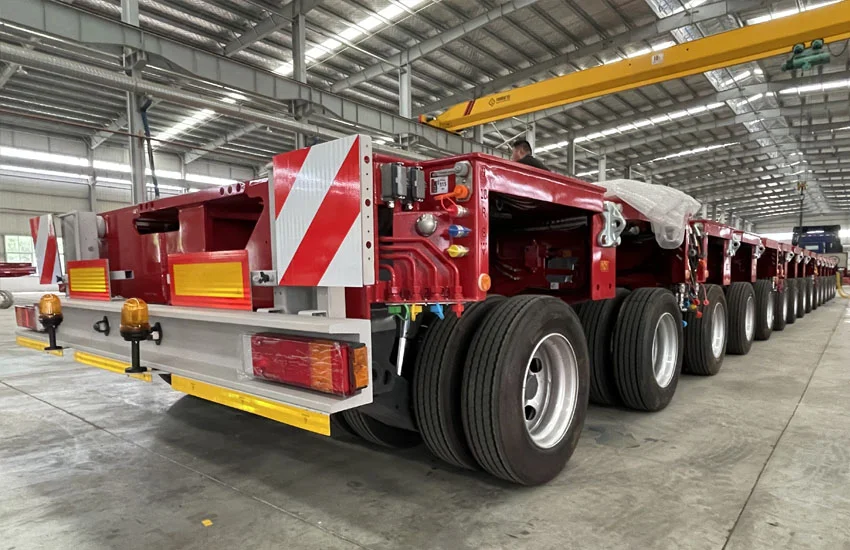

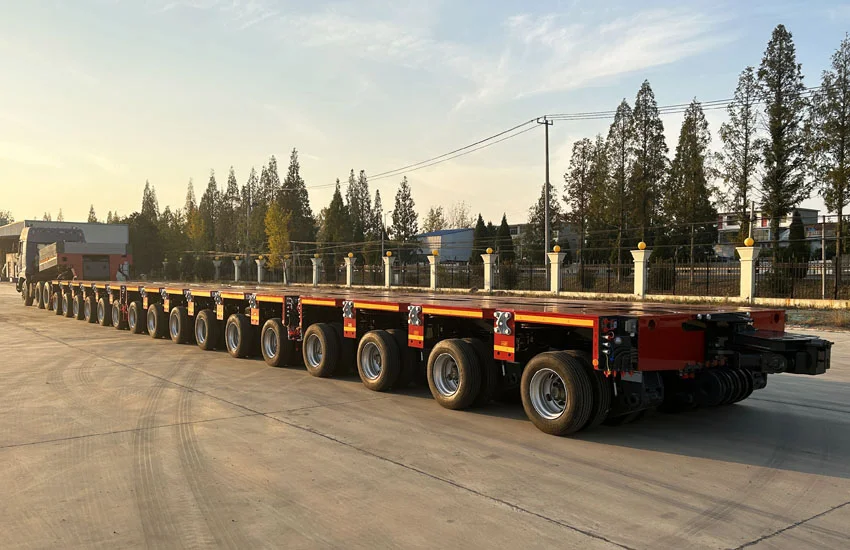

HPG1 16 Axles
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 24,000 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control

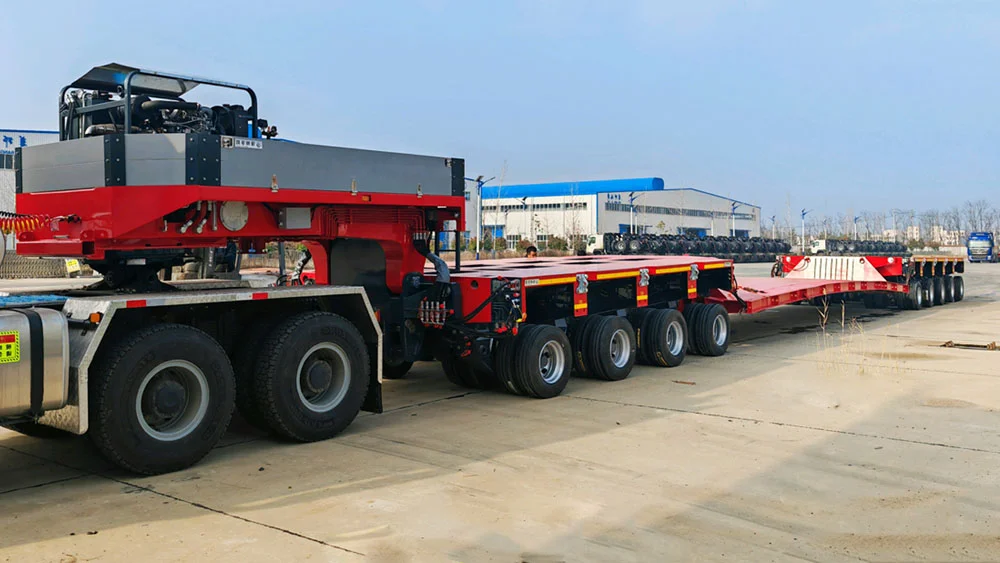

MODULAR TRAILER WITH DROP DECK
- Axle Load: 45 t at 1 km/h
- Axle Spacing: 1,500 mm/1,800 mm/2,450 mm
- Vehicle Length: 25,500 mm
- Vehicle Width: 3,000 mm
- Vehicle Height: 1175±300mm
- Twin Tires: 215/75 R 17.5
- Max. Steering Angle: ± 55°
- Hydraulic Power Pack: Kohler Engine
- Operation: Cable remote control & Radio remote control
Product gallery
HIPOTRUK HPG1 MODULAR TRAILER
We have exported globally, from Africa to Central and South America, and Southeast Asia, and we understand the unique demands of your job. Our trailers are customizable, ensuring they align perfectly with your specific requirements, safeguarding your cargo every step of the way.
Flexibility for Every Type of Cargo
ACCESSORIES AND OPTIONS
HIPOTRUK provides comprehensive accessories to combine with your European brand trailer and enhance your transport solutions, including Gooseneck, Drop Deck Bed, Spacer, High Girder Bridge, Vessel Bridge, and Turntable.

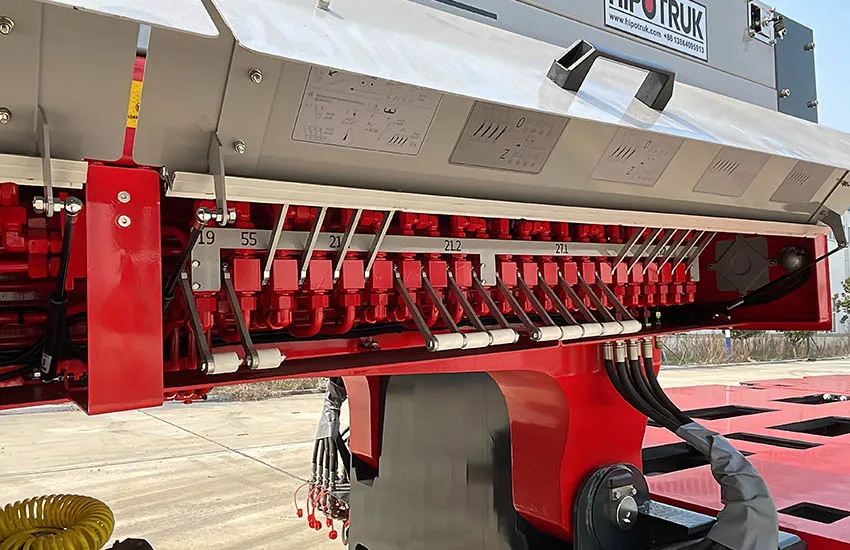

Hydraulic Gooseneck For Modular Trailers, Compatiable European brands)

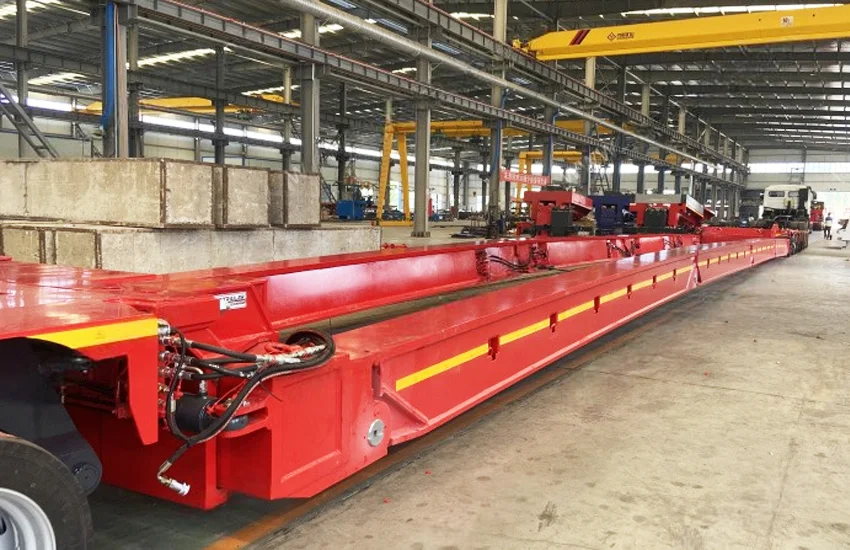

Vessel Bridges for Hydraulic Modular Trailers ((Compatible European brands)
High Girder Bridge for Hydraulic Modular Trailers, (Compatible European brands)
Windmill Blade Adapter with Modular Trailers, (Compatible European brands)
Split type Modular Trailer, Side by Side combination, (Compatible European brands)
YOUR BENEFITS
EMPOWER YOUR BUSINESS WITH HIPOTRUK
Why Choose Hipotruk Hydraulic Modular Trailers? | Top Reasons to Trust HIPO for Your Transport
COMBINATION WITH YOUR TRAILER PERFECTLY
AFFORDABLE, COST-SAVING OPTIONS
DURABLE CONSTRUCTION FOR NO-STOP WORKING
TAILOR-MADE SOLUTIONS & SWIFT DELIVERY
VERIFIED BY THIRD-PARTY INSPECTORS, ASSURED QUALITY
UNSURPASSED SERVICE, YOUR RELIABLE BACKBONE

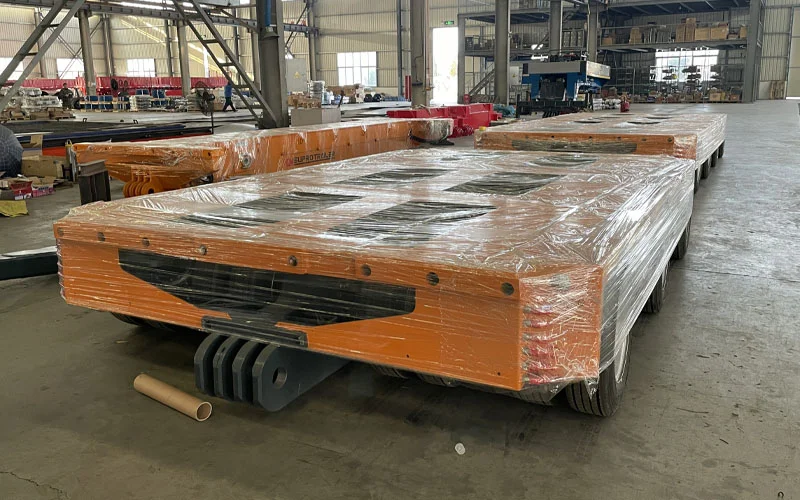

EXPERT PACKING AND SHIPPING
What they say about us
Expertise and quality second to none, A stellar experience with Hipotruk’s Trailers.
Common Questions
Most Popular Questions.
The Most Popular Questions You May Want to Know About Us
Can't Find Answer? Ask Us
Contact us 24×7 to answer your questions and requirements.
+86 13864095913
+86 13864095913
Why choose hipotruk
EMPOWER YOUR BUSINESS WITH HIPOTRUK
We always put the safety at the first place. our modular trailers are born from cutting-edge technology and years of experience. HIPOTRUK stands as the ideal solution for any task, ensuring peace of mind, even with the heaviest loads.
CARRY MORE, WORRY LESS
EFFORTLESS UPKEPP-HIPOTRUK GOOSENECK
ENHANCED LIFT & STEERING CAPABILITES
KEEP ROLLING LONGER
GO FURTHER WITHOUT EXTRA STOP
EASE YOUR WORKDAY
CERTIFIED SAFETY EQUIPMENT
