MAKE YOUR BUDGET GO FURTHER WITH OUR TOP-PERFORMING WIND TURBINE BLADE TRAILER

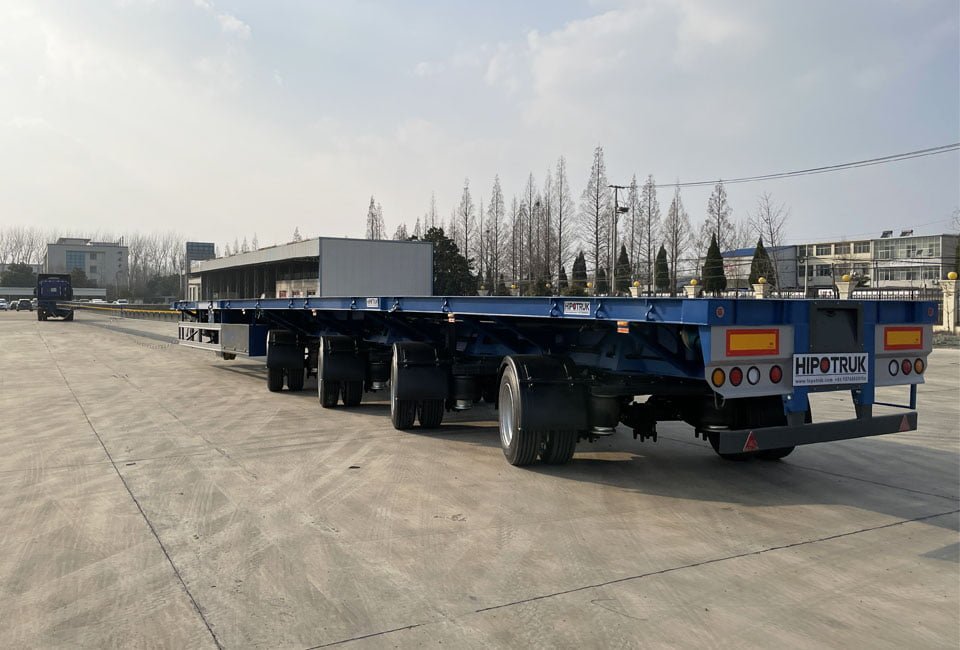

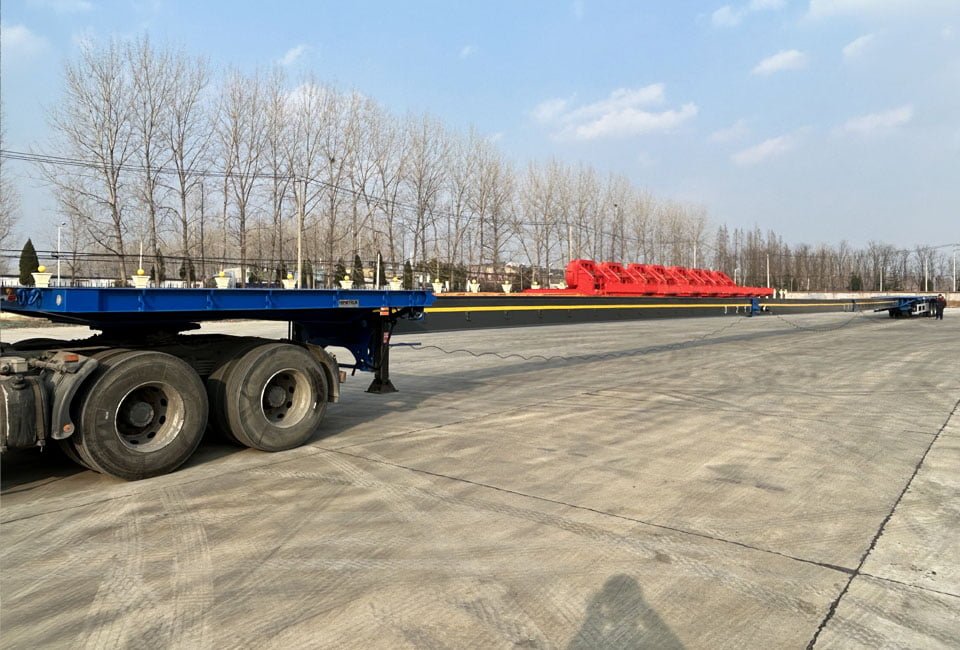

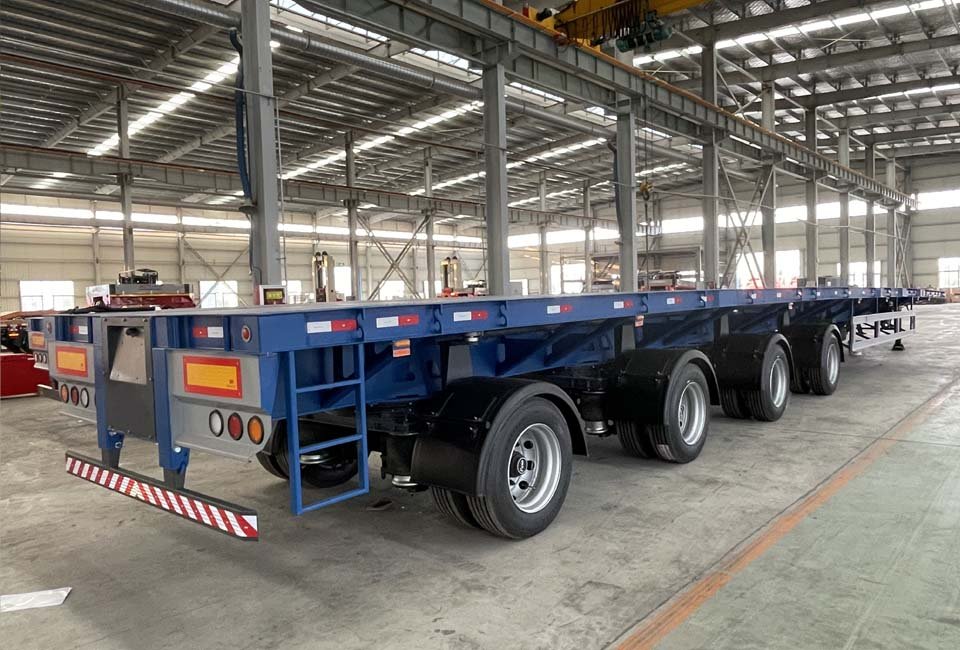

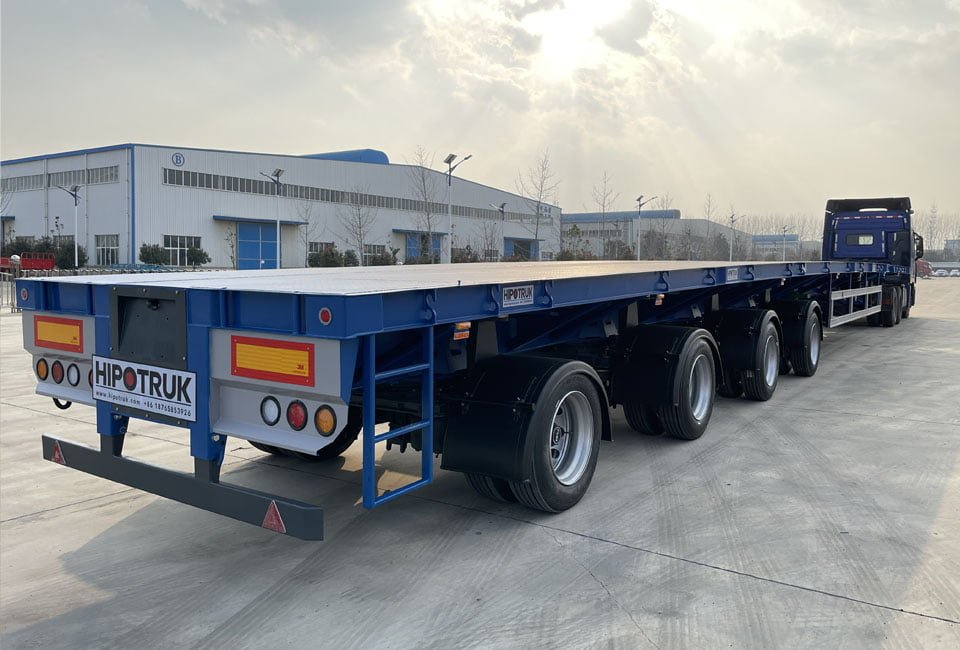

70 Meters Wind Turbine Blade Transport Trailer-HIPOTRUK
With the length of wind turbine blades getting longer and longer, CHINA HIPOTRUK designed and produced the 4 axles 70 meters Wind Turbine Blade Transport Trailer for the wind blade transport project.
The total length of the wind turbine blade transport trailer can be up to 70 meters after 3 times extensions, which is the longest wind blade trailer in China now and can use for wind blades up to 100m in length and 35 tons in weight. Although the overall length of the trailer is up to 70 meters, we adopt high-quality steel materials and a special structure design, which makes the load capacity of the trailer up to 40ton and the extension beams never happen sag problems.
Equipped with the advanced hydraulic turntable steering system, make the steering angle of the axles up to ± 45°. Thanks to the air suspension, the height of the loading deck can be adjusted according to different roads condition. It can be used to carry different types of wind blades, such as Nordex and Siemens Gamesa to GE, Vestas, Enercon, Suzlon wind blades.
Technical Specification
| Dimension ( mm ) | 21850mm X 2900mm X 1600mm |
| Overall length ( mm ) | 70,000 |
| Extension | 3 Times extendable |
| Platform height(mm) | 1600+100/-75 |
| Load Capacity(t) | 40 |
| Steering system | Hydraulic Turntable Steering System |
| Steering angle | ±45° |
| Axle | 4 Axles ( the front and rear one is lifted by airbag) |
| Operation | Manual or Remote Control |
| Suspension | Air Suspension |
| Tire | 275/70R22.5, 17 units |
| Brake system | Cable remote control & Radio remote control |
| Brake system | WABCO |
| Landing gear | JOST |
Features
- 3 Times extendable
- Overall length ( closed ) 21,850mm
- Overall length ( open ) From 21,850mm extends to 70,000mm
- Load capacity 40t
- Turntable steering offers ±45°
- Twin tires 275/70R22.5
- 4 axles ( the front and rear one is lifted)
- Air Suspension System
- Manual control & Radio remote control
Get a Quote
Contact us 24×7 to answer your questions and requirements.
Need more help?
Contact us 24×7 to answer your questions and requirements.
Customer Services
+86 13864095913
Free Consultation
+86 13864095913
PRODUCT GALLERY
HIPOTRUK WIND TURBINE BLADE TRAILER
We, HIPOTRUK 70m Wind Turbine Blade Trailers to exported globally, from Africa to Central and South America, and Southeast Asia, and we understand the unique demands of your job. Our trailers are customizable, ensuring they align perfectly with your specific requirements, safeguarding your cargo every step of the way.
Why choose hipotruk
EMPOWER YOUR BUSINESS WITH HIPOTRUK
Safety is our top priority, ensuring each trailer is the product of advanced technology and extensive experience. HIPOTRUK is the optimal choice for transporting wind blades, providing reliability and peace of mind, even with the most substantial cargoes.
UNMATCHED EXTENSION AND CUSTOM-MADE
SUPERIOR STEERING FOR EASY RIDES
EASY-TO-USE DESIGN
EASY STEERING AND SAVINGS

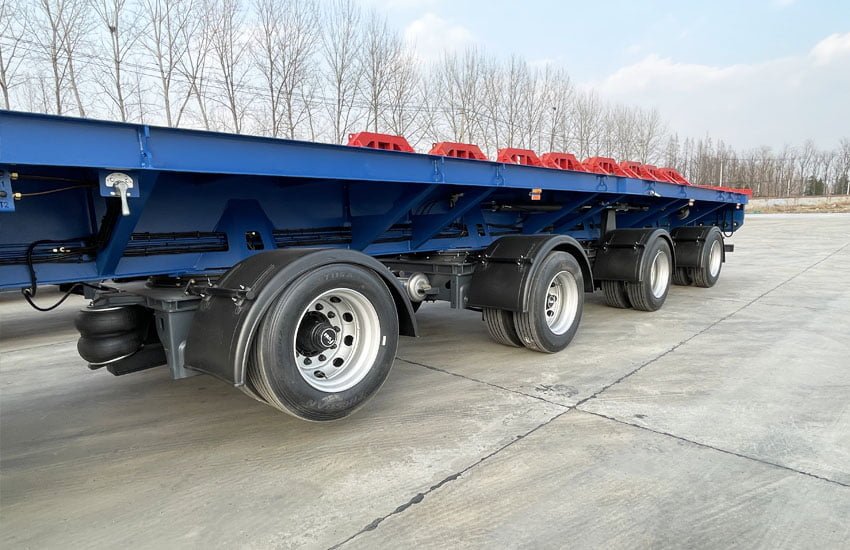

Hipoturk smart air suspensions can lift the front one and rear one axle to help you save on fuel and tire wear when the trailer’s not loaded.
